N Male Connector for LMR400RG213 cable Crimp

N Male Connector for LMR400RG213 cable Crimp

    • N Male Connector for LMR400RG213 cable Crimp
    • N Male Connector for LMR400RG213 cable Crimp
    • N Male Connector for LMR400RG213 cable Crimp
  • N Male Connector for LMR400RG213 cable Crimp

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: N-J400YA-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

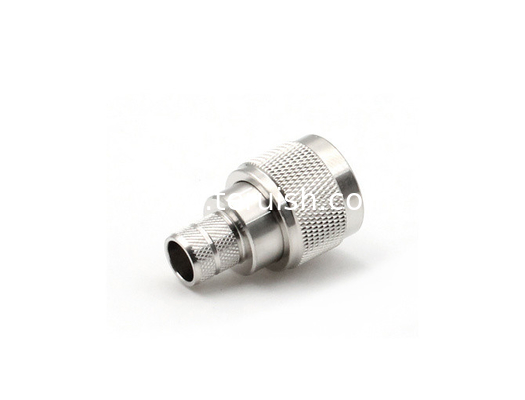

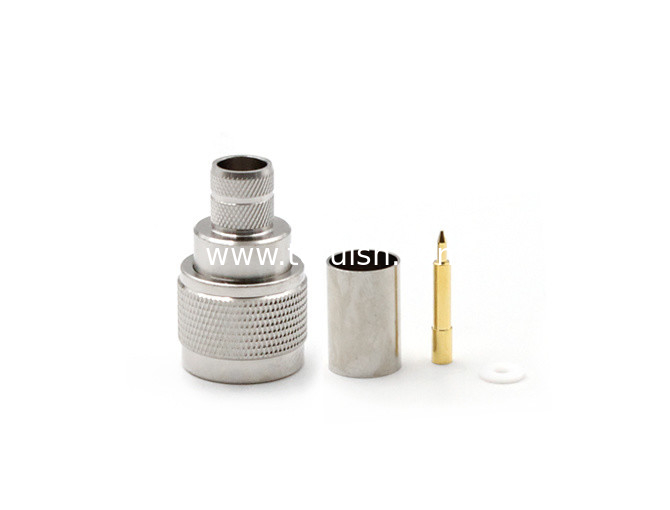

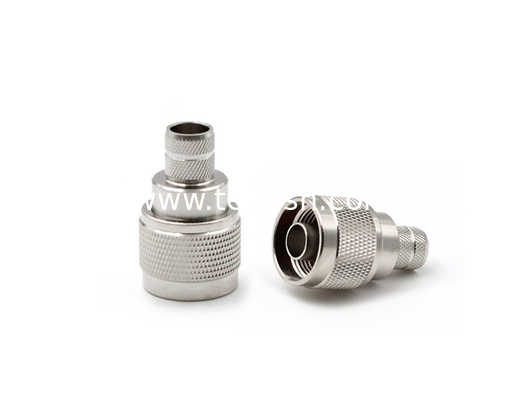

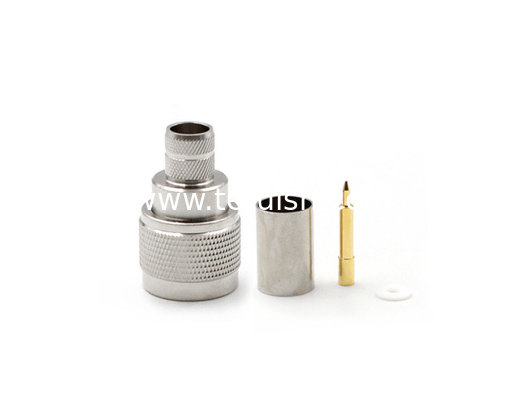

    N Male Connector for LMR400RG213 cable Crimp

    TYPE N are very popular screw-coupling middle-power coaxial connectors, which has the excellent peformance of greet vbration-proof,high reliability, superior electrical and mechanical properties, They are widely used for communication applications where tration resistance and harsh environment is required. The interface mating dimensions and technical characterstics are according to the standard MIL-C-39012 IEC60169-16AND CECC22210



    Product Details

    N Male Connector for LMR400/RG213 cable Crimp

    Teruilai P/N: N-J400YA-2

    Electrical data Requirments
    Frequency range 0-6GHZ
    Dieletric withstanding voltage 1500V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    VSWR ≤1.20

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -65℃ ~+165℃

    Material data Requirments
    Connector parts Material Plating
    Pin contacts Bronze Gold
    Body Brass Nickel
    Coupling nut Brass Nickel
    Insulators PTFE
