| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | N-J5D-FBY-D2 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.

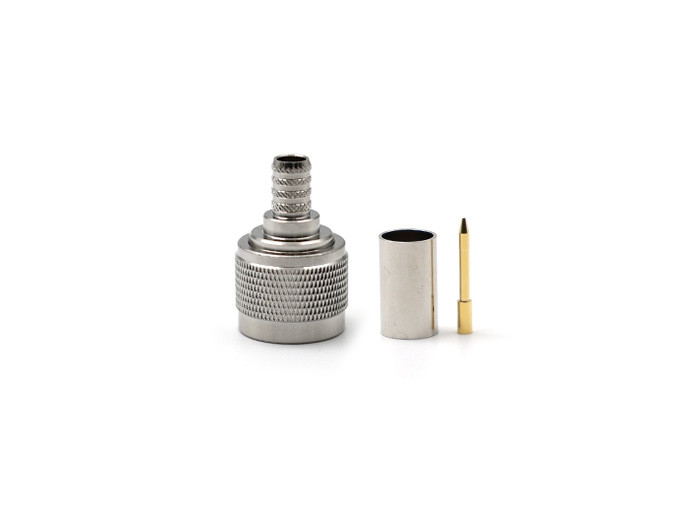

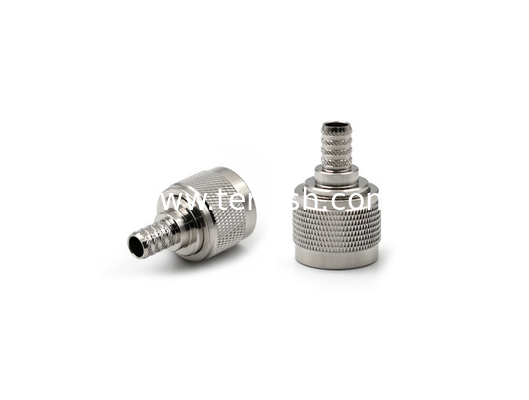

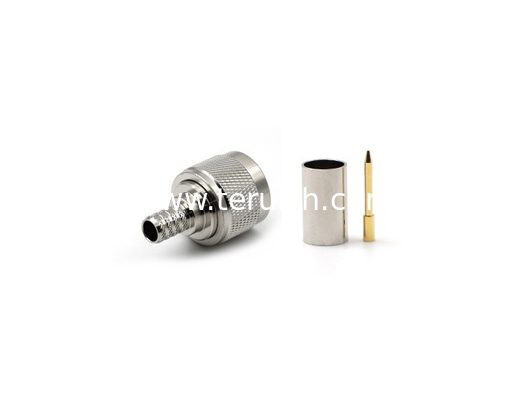

N Male Connector For LMR300(5D-FB) cable
Teruilai P/N: N-J5D-FBY-D2
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃~+125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Coupling nut | Brass | Nickel |
| Pin contacts | Brass | Gold |
| Insulators | Teflon | |
| Housing | Brass | Nickel |
