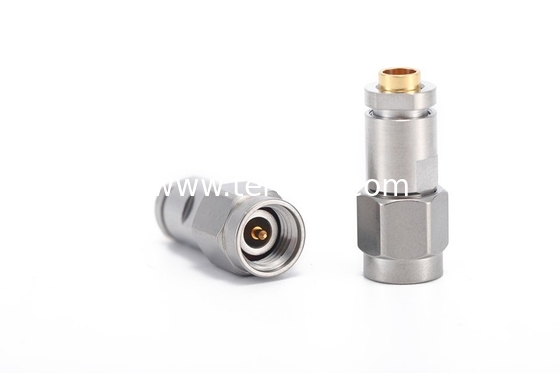

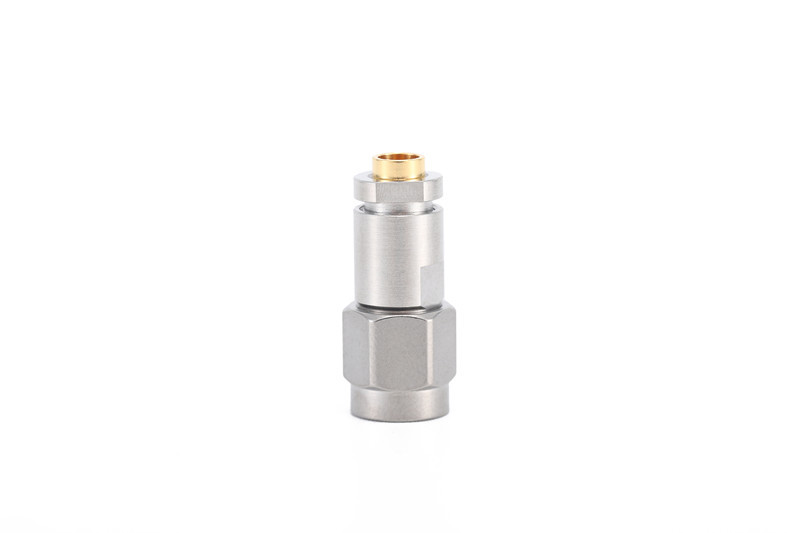

2.92mm male for Gore 3507 cable RF Coaxial Connector

2.92mm male for Gore 3507 cable RF Coaxial Connector

    • 2.92mm male for Gore 3507 cable RF Coaxial Connector
    • 2.92mm male for Gore 3507 cable RF Coaxial Connector
    • 2.92mm male for Gore 3507 cable RF Coaxial Connector
  • 2.92mm male for Gore 3507 cable RF Coaxial Connector

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: CE, RoHS
    Model Number: 2.92-J3507GT1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description

    2.92mm male for Gore 3507 cable RF Coaxial Connector

    Series 2.92mm millimeter-wave high-frequency RF Coaxial Connector for Gore 3507 cable
    They have the advantages of small size, lightweight, high frequency, and super reliability, widely used in modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.



    2.92mm male for Gore 3507 cable RF Coaxial Connector

    1. Frequency Range

    The 2.92 mm Male RF Connector (K-type Connector) is suitable for high frequency applications, ranging in frequency from DC to 40ghz, and can meet all kinds of high frequency signal transmission requirements.

    2. Structural design

    Precision Interface: high-precision mechanical design ensures good contact between the connectors when they are inserted and pulled out, reducing signal loss.

    Durable materials: usually made of high-strength metals and insulating materials, with excellent corrosion resistance and mechanical strength, adapt to harsh environment.

    3. Low insertion loss and excellent return loss

    The 2.92 mm Male connector features low insertion loss and excellent return loss to reduce signal reflection and improve Signal integrity.



    2.92 mm Male RF Connector is an important component of RF Engineering and communication because of its high frequency performance, excellent signal transmission capability and wide application scenarios. Its superior characteristics and advantages make it play a key role in modern science and technology, is an ideal choice to ensure high-quality signal transmission. Whether in telecommunications, radar, test equipment, or aerospace and scientific research, 2.92 mm Male connectors provide a reliable solution to the growing demand for high frequency applications.



    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range DC-40GHZ
    Dieletric withstanding voltage ≧750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦4.0mΩ
    .Outer conductor ≦2.0mΩ
    VSWR ≦1.20






    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to+85℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel (Su303),passivated
    Pin contacts Beryllium-Copper gold-plated
    Insulators PEI
