| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | CE |
| Model Number: | SFA/AWS A5.1 E7016 TERUI CJ506 |
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 tons per month |
Details

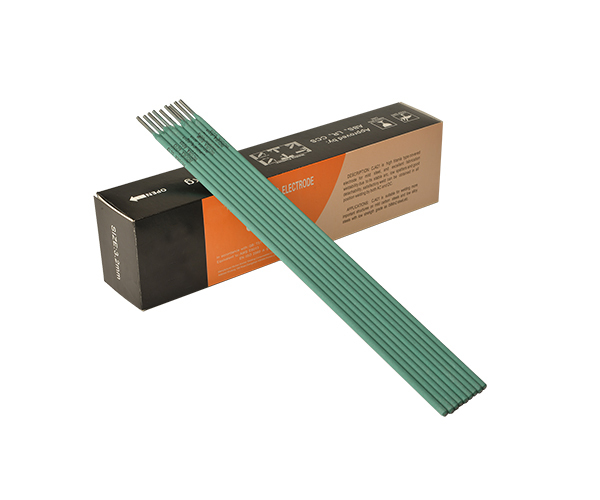

SFA/AWS A5.1 E7016 TEMO CJ506
Approved by: ABS BV CCS DNV GL LR NK
Description:A low hydrogen alkaline electrode for all positional welding with excellent welding properties, like good slag detachability and beautiful weld appearance, suitable for short arc welding.
Application: Used to weld the Marine steels (A,B,D, E,AH36,DH36,EH36)and other same grade strength structures, like vehicles, bridges and constructions etc.
Welding Position:
Diameters: 2.5mm, 3.2mm, 4.0mm, 5.0mm.
Packaging: 2kg, 5kg.
Typical Mechanical Properties:
Tensile strength(MPa): 550
Yield stress(MPa): 446
Elongation(%): 28
Impact values(≥47J/-30℃): 120
Note:
1.The electrodes must be baked 1-2 hours in 350℃-450℃ before using.
2. Rusty, oil stains, water and other impurity on the weld parts must be cleaned before welding.
