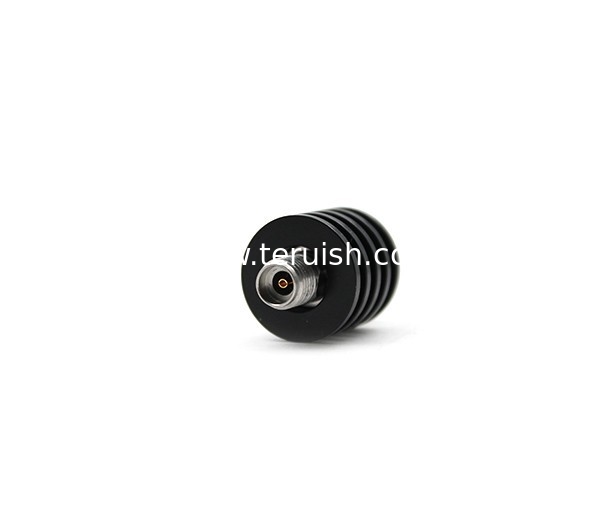

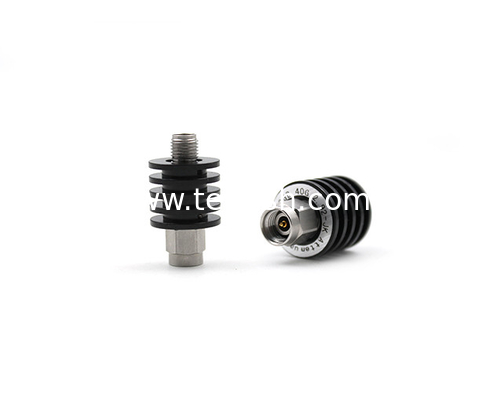

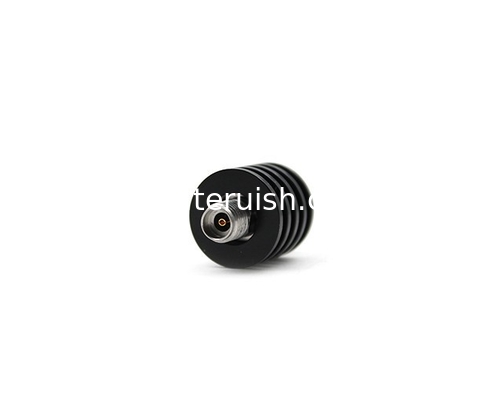

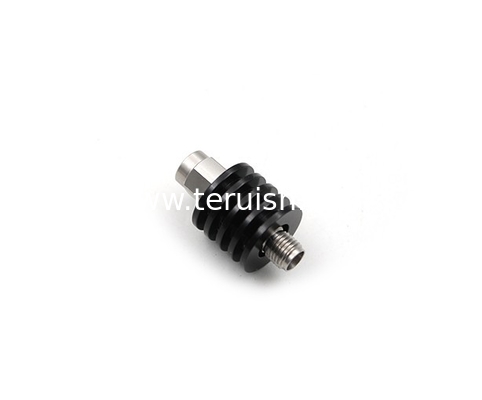

Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB

Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB

    • Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB
    • Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB
    • Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB
  • Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TRI-2.92MF-2-40-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Fixed Attenuators

    N RF Fixed Attenuator is used to reduce the signal level. The general reason for wanting to reduce the signal level may be to avoid receiving a signal with too high a level in a hierarchical circuit, or to meet the need to control the signal level in an application. n RF Fixed Attenuator usually consists of a resistor network that allows heat to escape at a certain rate.

    As a RF Fixed Attenuator supplier, we have a wide range of RF Fixed Attenuator models to meet the diverse needs of different frequency bands and power, and use high-quality materials and advanced technology, guarantee RF Fixed Attenuator products with high precision, low insertion loss and high reliability. Technical Services, professional team at any time to provide buyers with technical advice and customized solutions to solve the use of all kinds of problems. In terms of price, with mature supply chain and efficient production processes, to achieve cost-effective. After-sales also have a sound system to ensure that the purchase of worry-free.

    Fixed Attenuator 2.92 Male to Female 2W 40GHz 30dB

    Series 2.92mm Coaxial connectors are one kind of precision millimeter-wave connectors developed from series SMA.They adopt air interface.They have the advantages of small,light,high frequency and superior reliability,etc.The products have been widely used in the field of modern precision measure and micro-wave communication equipment.



    Product Details



    Fixed Attenuator 2.92 Male tp Female 2W 40GHz 30dB

    Teruilai P/N : TRL-2.92MF-2-40-30

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range 0-40GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.3
    Dieletric withstanding voltage ≧750V
    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel ,passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI
