SMA Male to Female Attenuator Power 2W 18GHZ 5dB

SMA Male to Female Attenuator Power 2W 18GHZ 5dB

    • SMA Male to Female Attenuator Power 2W 18GHZ 5dB
    • SMA Male to Female Attenuator Power 2W 18GHZ 5dB
    • SMA Male to Female Attenuator Power 2W 18GHZ 5dB
  • SMA Male to Female Attenuator Power 2W 18GHZ 5dB

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TRI-SMAMF-2-18-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Fixed Attenuators

    N RF Fixed Attenuator is used to reduce the signal level. The general reason for wanting to reduce the signal level may be to avoid receiving a signal with too high a level in a hierarchical circuit, or to meet the need to control the signal level in an application. n RF Fixed Attenuator usually consists of a resistor network that allows heat to escape at a certain rate.

    As a RF Fixed Attenuator supplier, we have a wide range of RF Fixed Attenuator models to meet the diverse needs of different frequency bands and power, and use high-quality materials and advanced technology, guarantee RF Fixed Attenuator products with high precision, low insertion loss and high reliability. Technical Services, professional team at any time to provide buyers with technical advice and customized solutions to solve the use of all kinds of problems. In terms of price, with mature supply chain and efficient production processes, to achieve cost-effective. After-sales also have a sound system to ensure that the purchase of worry-free.

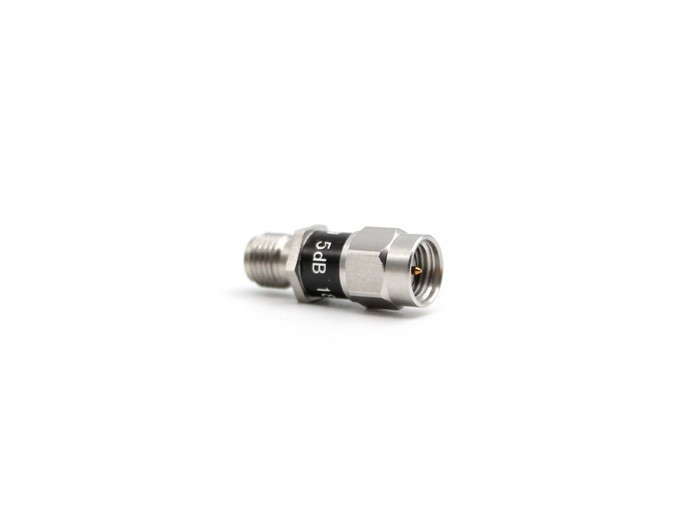

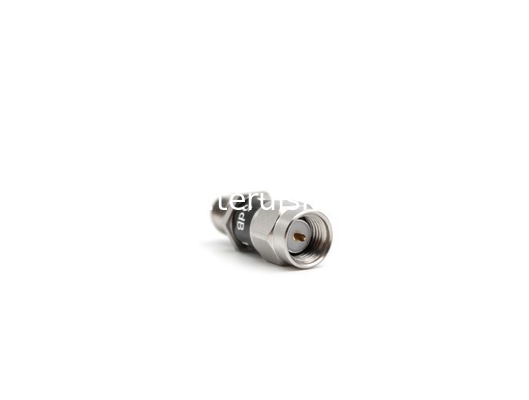

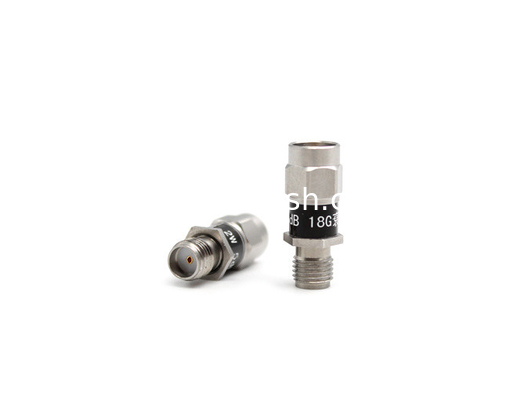

    SMA Male to Female Attenuator Power 2W 18GHZ 5dB

    This SMA attenuator has a male gender on side 1 and a SMA female connector on side 2. Our microwave attenuator is rated to 2 Watts at the stated attenuation value.



    Product Details



    SMA Male to Female Attenuator Power 2W 18GHZ 5dB

    Teruilai P/N : TRL-SMAMF-2-18-5

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-18Ghz
    Impedance 50Ω
    Nominal Attenuator 5dB
    Power Input 2Watt
    VSWR Maximum 1.30:1

    Mechanical data Requirments
    Durability (matings) ≧500


    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium copper Gold
    Insulators PTFE







    Electrical data Requirments
    Frequency range 0-40GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel ,passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI





    Datasheet
