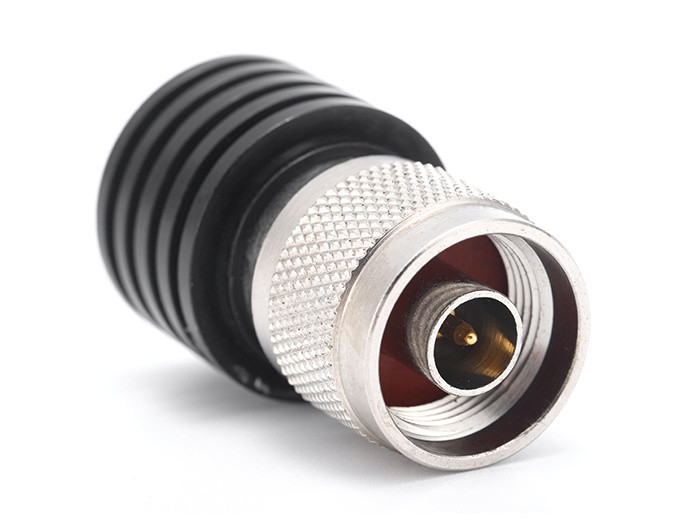

N male 5 Watts RF Termination

N male 5 Watts RF Termination

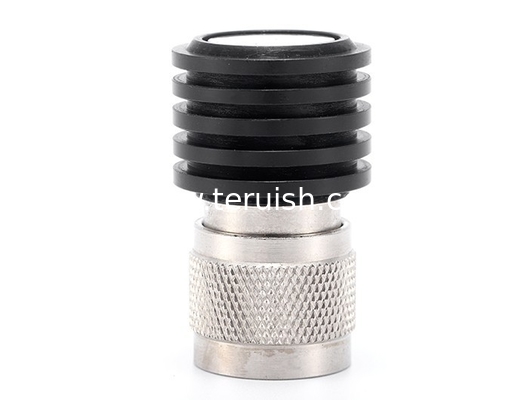

    • N male 5 Watts RF Termination

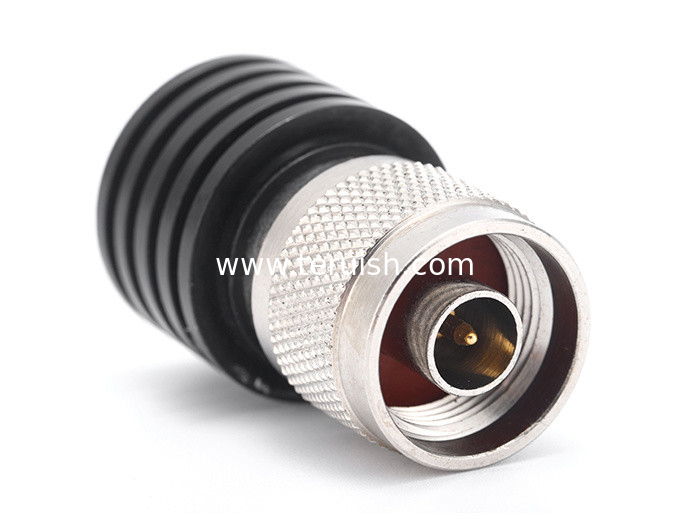

    • N male 5 Watts RF Termination

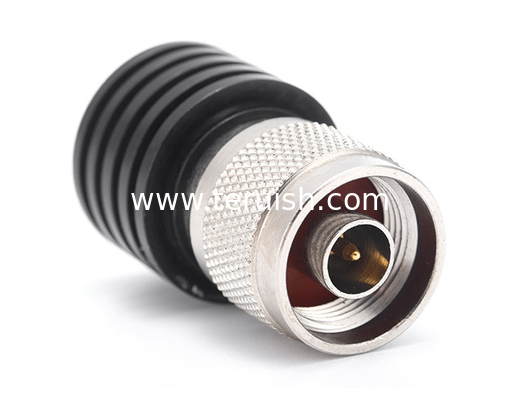

    • N male 5 Watts RF Termination

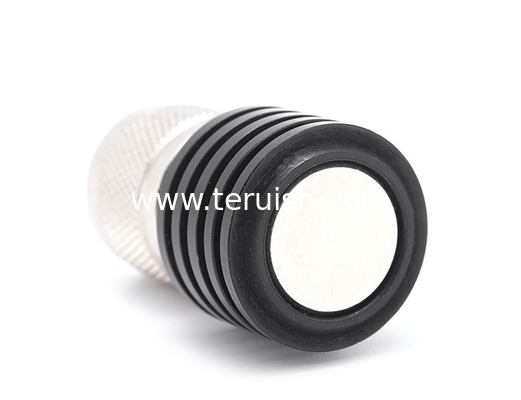

  • N male 5 Watts RF Termination

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: N-50JR-5W

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    N male 5 Watts RF Termination

    The N coaxial terminations can be designed based on customer 's request ,with impendence of 50Ω or 75 Ω.They can be matached to any transmission line . We have two kinds of material , brass with gold plated or stainless steel.



    Product Details



    N male 5 Watts RF Termination

    Teruilai P/N: N-50JR-5W

    RoHS Certificate: Compliant


    Electrical data Requirments
    Frequency range DC-6GHZ
    Dielectric withstanding voltage ≧1000V
    Characteristic impedance 50Ω
    Insulation Resistance ≧1000MΩ
    VSWR 1.25:1
    Power 5W

    Mechanical data Requirments
    Durability(matings) ≥500

    Environmental data Requirments
    Temperature range -40℃ to 85℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Nickel-plated
    Pin contacts Bronze gold-plated
    Insulators Teflon
