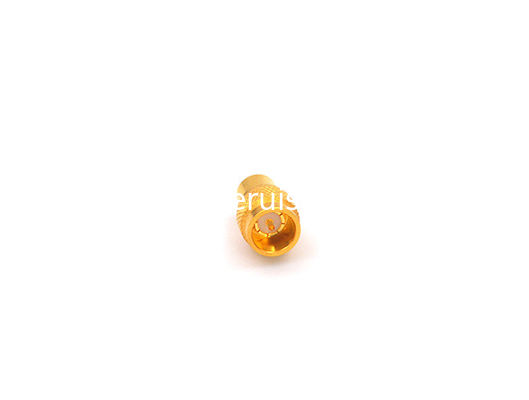

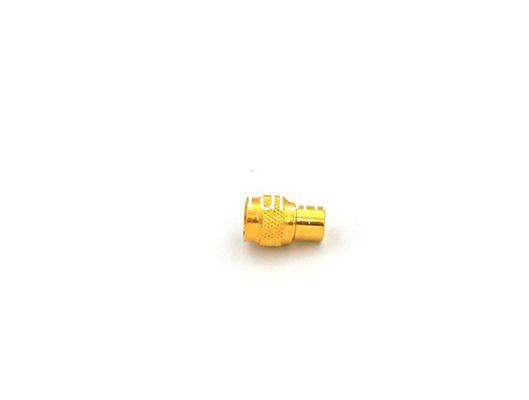

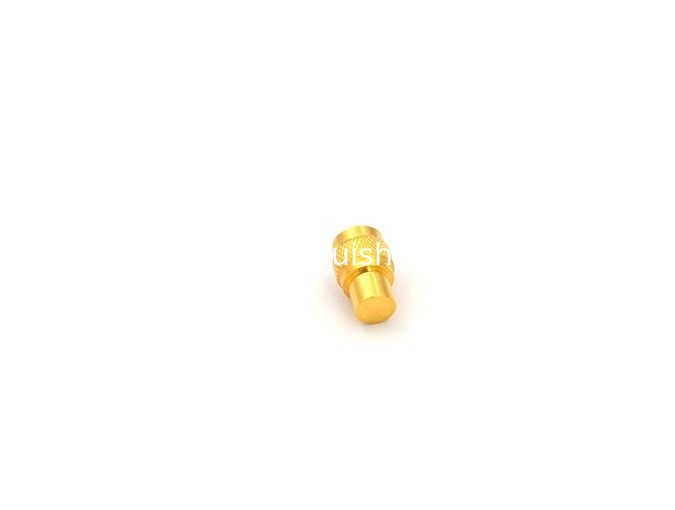

RF Termination Quick SMA Male, 1 Watt

RF Termination Quick SMA Male, 1 Watt

    • RF Termination Quick SMA Male, 1 Watt
    • RF Termination Quick SMA Male, 1 Watt
    • RF Termination Quick SMA Male, 1 Watt
  • RF Termination Quick SMA Male, 1 Watt

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: QSMA-50JR-1W

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    RF Coaxial Terminations

    SMA RF Termination Load is a threaded RF coaxial connector with an outer conductor inner diameter of 4.13 mm (0.163 inch) and a characteristic impedance of 50 Ω. It is usually considered to be a component mounted on the cable or installed on the instrument, as a transmission line electrical connection or separation of the components, mainly as a bridge.

    SMA interface standard: SMA RF Termination Load has the characteristics of bandwidth, miniaturization design, high-frequency transmission capability, suitable for all kinds of high-frequency communication systems.

    High-precision connection: SMA RF Termination uses a high-precision manufacturing process to ensure a tight fit between the connector and the cable or equipment, reducing signal loss.

    Load Matching: this SMA RF Termination Load product can provide accurate load matching to ensure that RF signals are transmitted without reflection or interference.

    Good stability: SMA RF Termination Load has good stability and reliability, can be in a variety of harsh environments to maintain excellent electrical performance.

    Easy installation and maintenance: this product adopts thread locking system, easy installation and disassembly, convenient for users to maintain and replace.

    SMA RF Termination is widely used in various high frequency communication systems, such as mobile communication base station, satellite communication system, radar system, testing instruments and so on. In these systems, SMA RF Termination is typically used in the following scenarios:

    Signal Termination: SMA RF Termination is used at the end or branch of the RF circuit to provide signal Termination to prevent signal reflection and interference.

    Our high power rf termination has strong power processing ability, can stably deal with high-power signals, and the working frequency range accurately matches various applications.

    As a reliable SMA RF Termination Load supplier in China, we offer a wide range of high power rf termination and SMA RF Termination Load, which are compatible with various SMA interfaces. And the price is reasonable, cost-effective super high. In the after-sales aspect, the professional team is on standby, provides the omni-directional technical support and the intimate service for you.



    RF Termination Quick SMA Male, 1 Watt

    According to customer requirements, the company can provide a variety of coaxial load. These loads with 50 ohm and 75 ohm impedance can be matched to the impedance of any transmission line and used as power absorption loads.



    Product Details



    RF Termination Quick SMA Male, 1 Watt

    Teruilai P/N: QSMA-50JR-1W

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-6GHZ
    Dielectric withstanding voltage 1000V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    VSWR 1.15:1
    Power 1W

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ to 70℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Gold
    Pin contacts Bronze Gold
    Insulators PTFE
