SSMA male 2 Watts RF Termination 26.5GHz

SSMA male 2 Watts RF Termination 26.5GHz

    • SSMA male 2 Watts RF Termination 26.5GHz
    • SSMA male 2 Watts RF Termination 26.5GHz
    • SSMA male 2 Watts RF Termination 26.5GHz
  • SSMA male 2 Watts RF Termination 26.5GHz

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SSMA-50JR-2-26.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

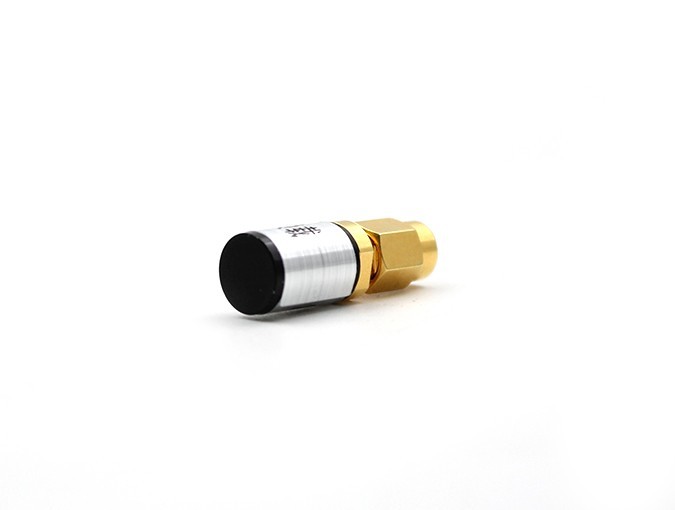

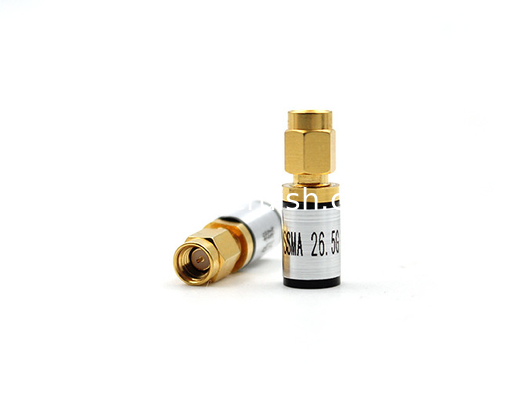

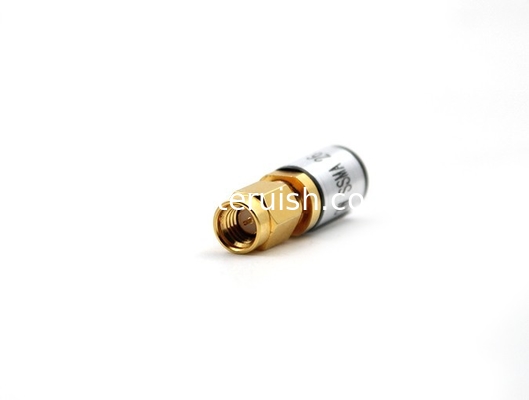

    SSMA male 2 Watts RF Termination 26.5GHz

    The SSMA RF Termination can be designed based on customer's request ,with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line..



    Product Details



    SSMA male 2 Watts RF Termination 26.5GHz

    Teruilai P/N: SSMA-50JR-2-26.5

    RoHS Certificate: Compliant


    Electrical data Requirments
    Frequency range DC-26.5GHZ
    Dieletric withstanding voltage ≧1000V
    Characteristic impedance 50Ω
    Insulation Resistance ≧1000MΩ
    VSWR ≦1.15:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -40℃ to 70℃

    Material data Requirments
    Connector parts Material Plating
    Body Brass Gold-plated
    Pin contacts Bronze gold-plated
    Insulators Teflon
