| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | SMA-50JRB Datesheet |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
The SMA RF Termination can be designed based on customer's request ,with impendence of 50Ω or 75 Ω. The RF Termination can be matched to any transmission line.

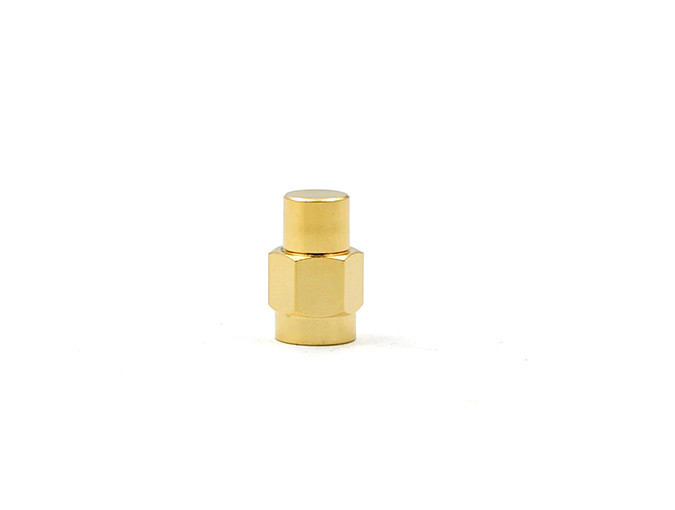

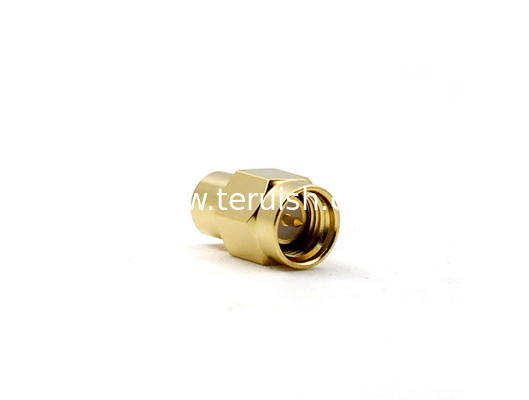

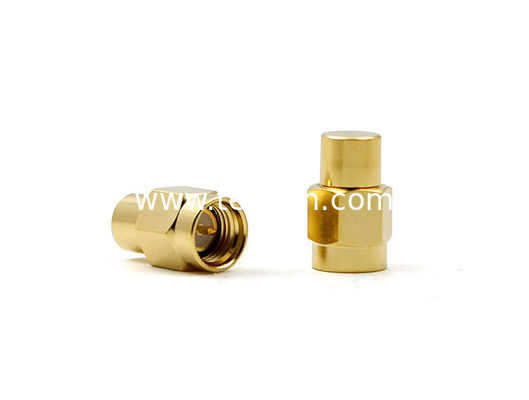

SMA male 50W RF Termination
Teruilai P/N: SMA-50JRB Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.25 | |
| Power | 1W | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Pin contacts | Bronze | Gold-plated |
| Insulators | PTFE | |
