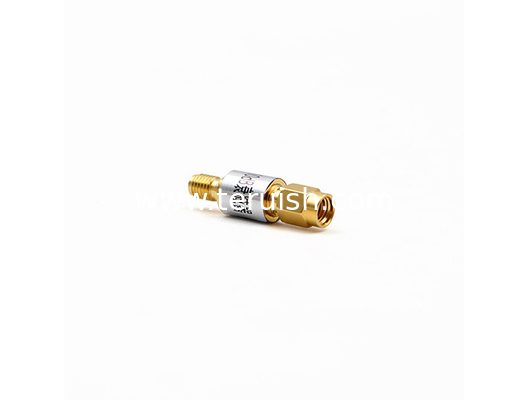

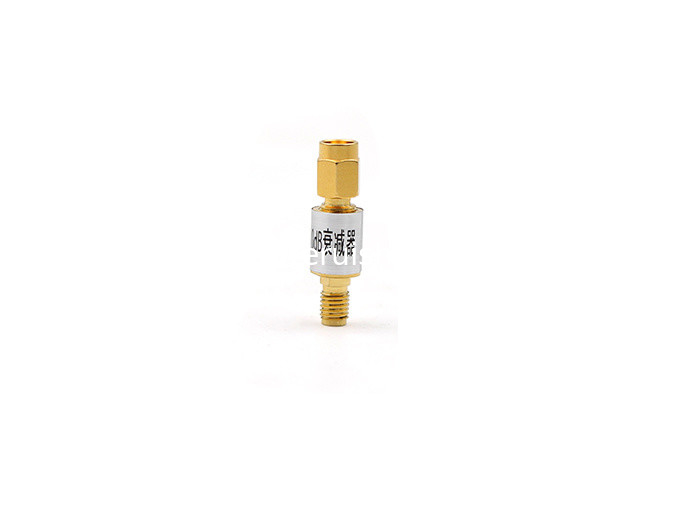

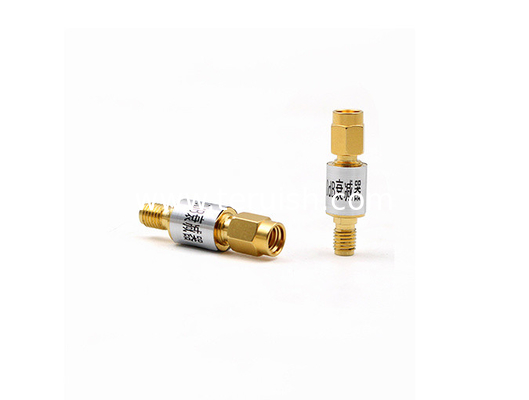

Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB

Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB

    • Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB
    • Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB
    • Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB
  • Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: SSMAMF-2-26.5-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-14 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB



    Series 2.92mm Coaxial connectors are one kind of precision millimeter-wave connectors developed from series SMA.They adopt air interface.They have the advantages of small,light,high frequency and superior reliability,etc.The products have been widely used in the field of modern precision measure and micro-wave communication equipment.



    Product Details

    Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB

    Teruilai P/N : TRL-SSMAMF-2-26.5-10

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-18Ghz
    Impedance 50Ω
    Nominal Attenuator 20dB
    Power Input 2Watt
    VSWR Maximum 1.20

    Mechanical data Requirments
    Durability (matings) ≧500


    Material data Requirments
    Connector parts Material Plating
    Body Brass Gold
    Coupling nut Brass Gold
    Pin contacts Beryllium copper Gold
    Insulators PTFE
