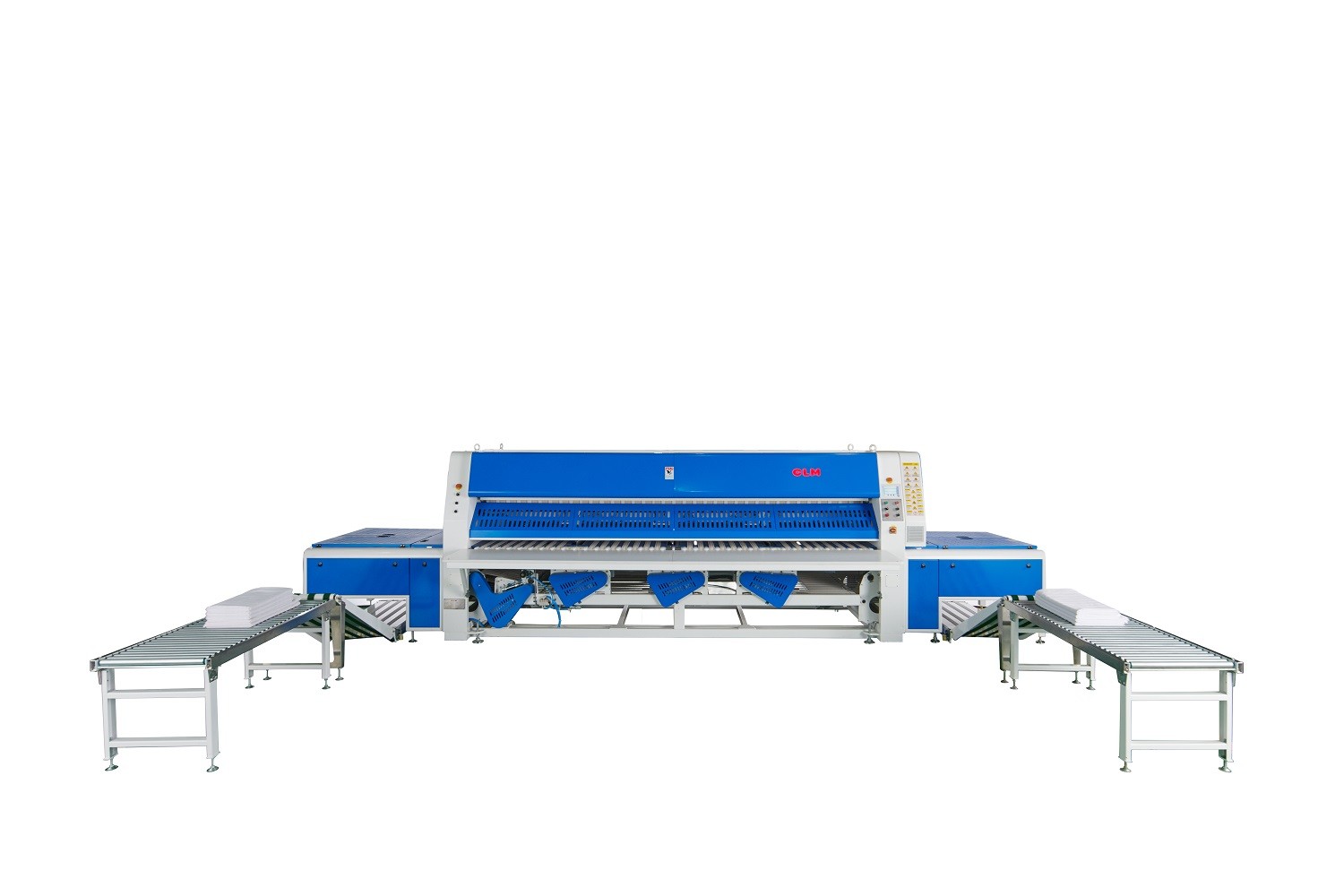

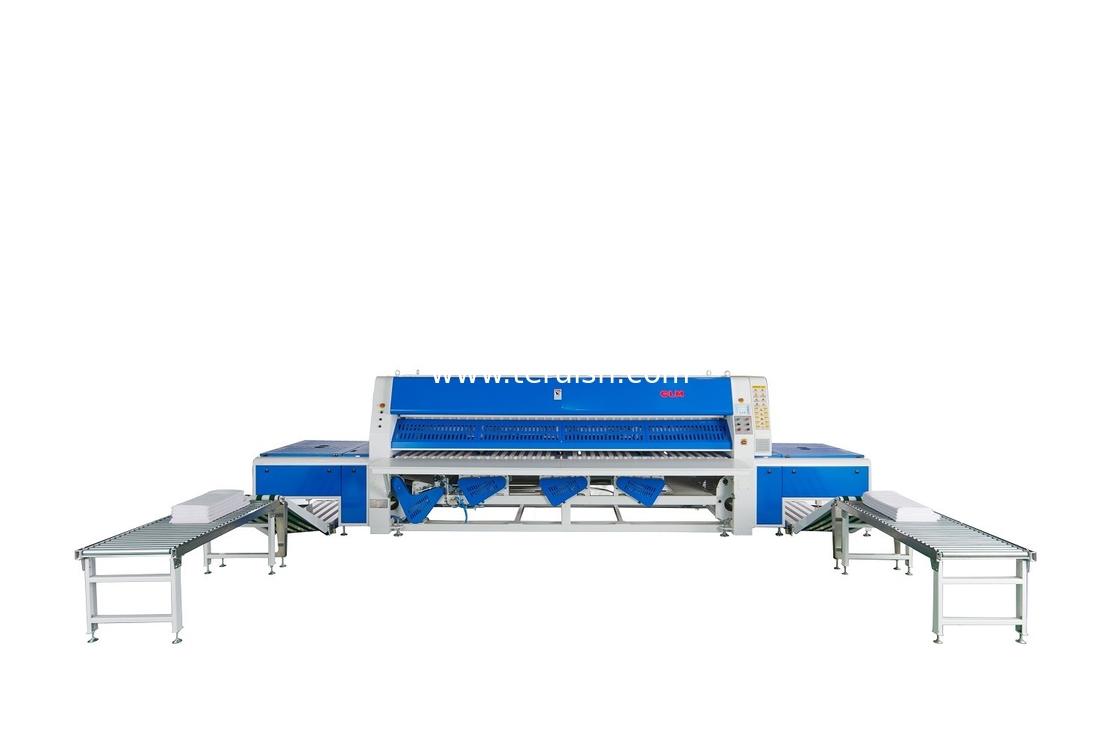

Folding Machine with Two Lanes And Two Stacker Positions KZD-S3500.

Folding Machine with Two Lanes And Two Stacker Positions KZD-S3500.

Folding Machine with Two Lanes And Two Stacker Positions KZD-S3500.

Product Details:

Place of Origin: Made in China
Brand Name: CLM
Certification: CE
Model Number: KZD-S3500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Packaging
Delivery Time: 45 days
Payment Terms: T/T,L/C
Contact Now
Detailed Product Description
Color: Blue With White

Folding Machine with Two Lanes And Two Stacker Positions KZD-S3500



Adopt 7 inch colorful touch screen and realize man-machine conversation function. There are over 20 kinds of folding programs for choice.

Two long fold with two cross fold function, the first two long fold adopt air knife folding way, and two cross fold adopt mechanical knife folding way.



Folding machine with two channels and two stacker positions

National initiative,3 national patents, PingAn Property insurance

The main technical features of CLM folding machine with two channels and two stacker positions:

Adopt 7 inch colorful touch screen and realize man-machine conversation function. There are over 20 kinds of folding programs for choice.

Two long fold with two cross fold function, the first two long fold adopt air knife folding way, and two cross fold adopt mechanical knife folding way.

The highest speed of folding can be up to 60m/min which can realize the folding of 2000 pieces of bed sheets.

The stacker is part of standard configuration, and the stacker qty is optional setted, do not need to bend to carry, can prevent fatigue and also improve efficiency.

All electrical, pneumatic , bearing and motor components are all imported from Europe and Japan.



The main technical parameters of CLM folding machine with two channels and two stacker positions:

Items Data Unit Remark
Max folding size one channel 3500*3300 mm
two channels 1700*3300
Max transmission speed 60 m/min
Air supply Pressure 0.5~0.7 Mpa
Consumption 450 L/min
Power Supply Voltage 3phase,380V   With stacker
Power capacity 5.9 Kw
Dimension size Length 6975 mm With stacker
Width 3190 mm
Height 1830 mm
Weight Folder 3000 Kg
Stacker 2×500 Kg
