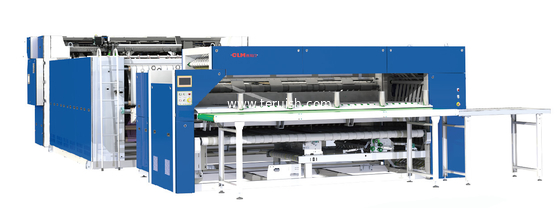

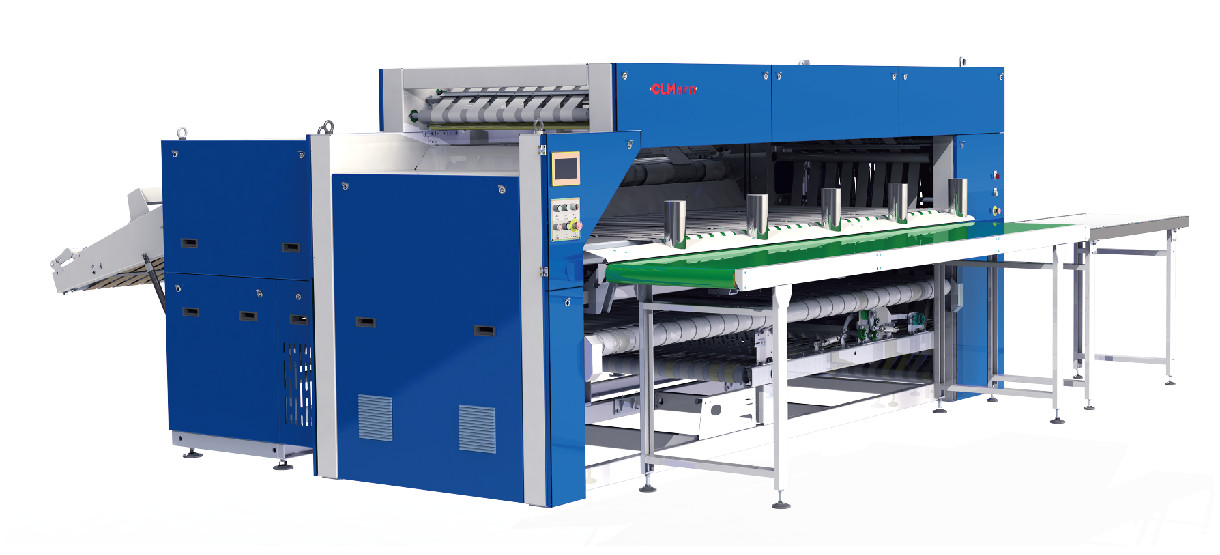

Automatic sorting folder with stacker(4 stacking position) , Up to 60m/min.

Automatic sorting folder with stacker(4 stacking position) , Up to 60m/min.

    • Automatic sorting folder with stacker(4 stacking position) ,  Up to 60m/min.
    • Automatic sorting folder with stacker(4 stacking position) ,  Up to 60m/min.
  • Automatic sorting folder with stacker(4 stacking position) ,  Up to 60m/min.

    Product Details:

    Place of Origin: Made in China
    Brand Name: CLM
    Certification: CE
    Model Number: KZD-S3500IV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard Export packaging
    Delivery Time: 45 days
    Payment Terms: T/T,L/C
    Contact Now
    Detailed Product Description
    Color: Blue With White

    Automatic sorting folder with stacker(4 stacking position)



    National initiative,5 national patents





    Fast speed: up to 60m/min.



    Running Smoothly: high folding efficiency, low linen plugging rate, even if the linen is plugged,operator can take them out within 2 minutes.



    Good stability: The complete machine rigidity is good, high precision of transmission parts,all spare parts imported from Europe and Japan.



    Save labor cost:automatically fold and stack different size linen such as bed sheets and quilt covers to reduce the labor intensity.



    CLM automatic sorting folder main technical features:

    1,

    Adopt 7 inch colorful touch screen and realize man-machine conversation function. There are over 20 kinds of folding programs for choice.

    2,

    Two long fold with three cross fold function, the first two fold use anti-static design and three cross fold use the design of mechanical knife.

    3,

    The highest speed of folding can be up to 60m/min which can realize the folding of 1200 pieces of bed sheets.

    4,

    Four stacking function: automatically stack four kinds of different size bed sheets and quilt covers, no need of manual sorting.

    5,

    All electrical and pneumatic components and bearing are imported from Europe and Japan.



    CLM automatic sorting folder main technical parameters:

    Items Data Unit
    Max folding width Single channel 1100~3300 mm

    Max transmission speed 60 m/min

    Air supply Pressure 0.5~0.7 Mpa
    Consumption 450 L/min

    Power Supply Voltage 3phase,380V
    Power capacity 3.61 KV

    Dimension L*W*H 5220×4335×1965 mm

    Weight Folder 4200 kg
    Stacker 180 kg
