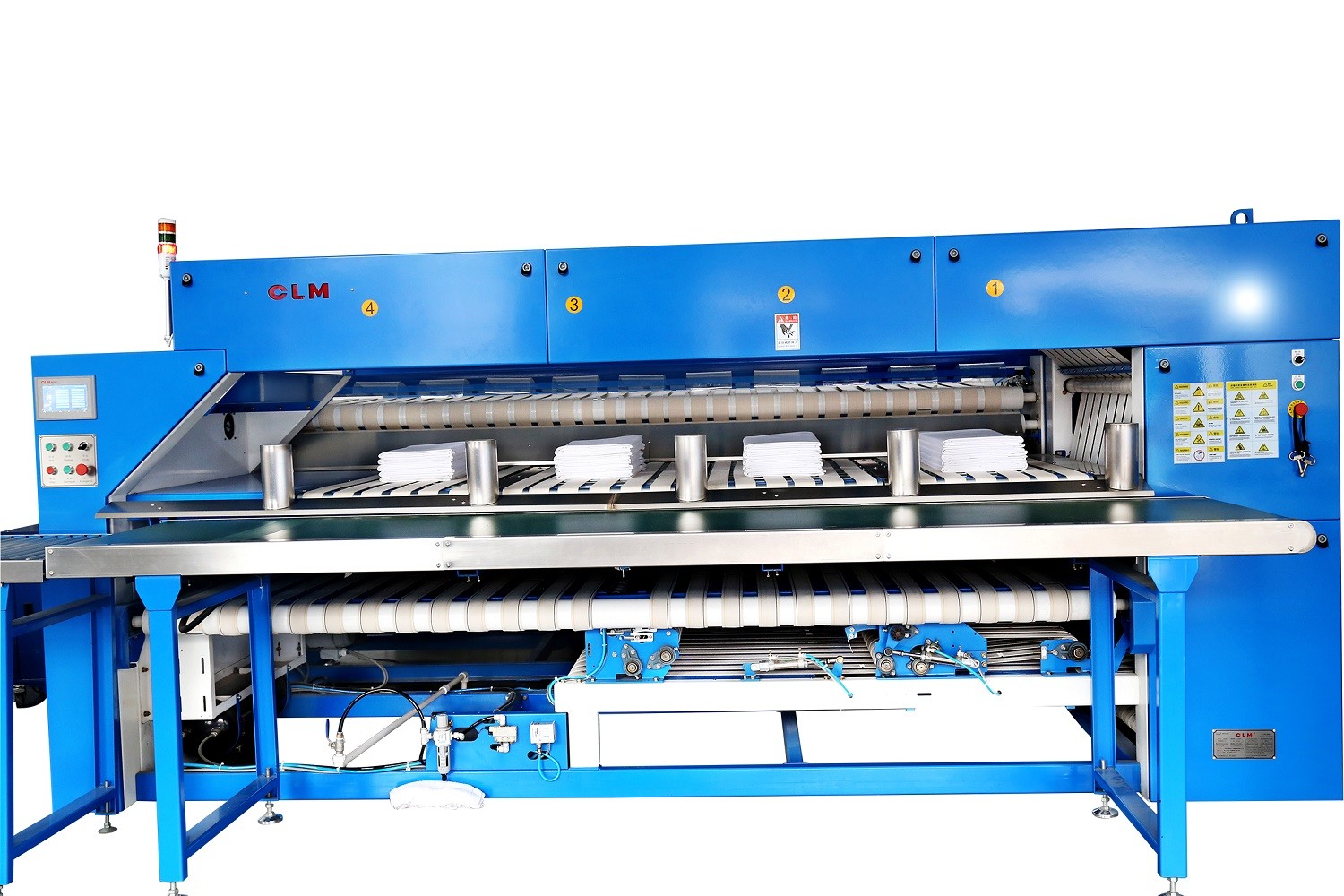

Automatic Sorting Folder with Stacker(4 Stacking Position) KZD-S3500IV , Up To 60m/min.

Automatic Sorting Folder with Stacker(4 Stacking Position) KZD-S3500IV , Up To 60m/min.

Automatic Sorting Folder with Stacker(4 Stacking Position) KZD-S3500IV , Up To 60m/min.

Product Details:

Place of Origin: Made in China
Brand Name: CLM
Certification: CE
Model Number: KZD-S3500IV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Packaging
Delivery Time: 45 days
Payment Terms: T/T,L/C
Contact Now
Detailed Product Description
Color: Blue With White

Automatic sorting folder with stacker(4 stacking position)  KZD-S3500IV



Fast speed: up to 60m/min.

Running Smoothly: high folding efficiency, low linen plugging rate, even if the linen is plugged,operator can take them out within 2 minutes.

Good stability: The complete machine rigidity is good, high precision of transmission parts,all spare parts imported from Europe and Japan.

Save labor cost:automatically fold and stack different size linen such as bed sheets and quilt covers to reduce the labor intensity.



Product Description

Automatic sorting folder with stacker(4 stacking position)

National initiative,5 national patents

Fast speed: up to 60m/min.

Running Smoothly: high folding efficiency, low linen plugging rate, even if the linen is plugged,operator can take them out within 2 minutes.

Good stability: The complete machine rigidity is good, high precision of transmission parts,all spare parts imported from Europe and Japan.

Save labor cost:automatically fold and stack different size linen such as bed sheets and quilt covers to reduce the labor intensity.

CLM automatic sorting folder main technical features:

1,Adopt 7 inch colorful touch screen and realize man-machine conversation function. There are over 20 kinds of folding programs for choice.

2,Two long fold with three cross fold function, the first two fold use anti-static design and three cross fold use the design of mechanical knife.

3,The highest speed of folding can be up to 60m/min which can realize the folding of 1200 pieces of bed sheets.

4,Four stacking function: automatically stack four kinds of different size bed sheets and quilt covers, no need of manual sorting.

5,All electrical and pneumatic components and bearing are imported from Europe and Japan.



CLM automatic sorting folder main technical parameters:

Items Data Unit
Max folding width Single channel 1100~3300 mm

Max transmission speed 60 m/min

Air supply Pressure 0.5~0.7 Mpa
Consumption 450 L/min

Power Supply Voltage 3phase,380V
Power capacity 3.61 KV

Dimension L*W*H 5220×4335×1965 mm

Weight Folder 4200 kg
Stacker 180 kg
