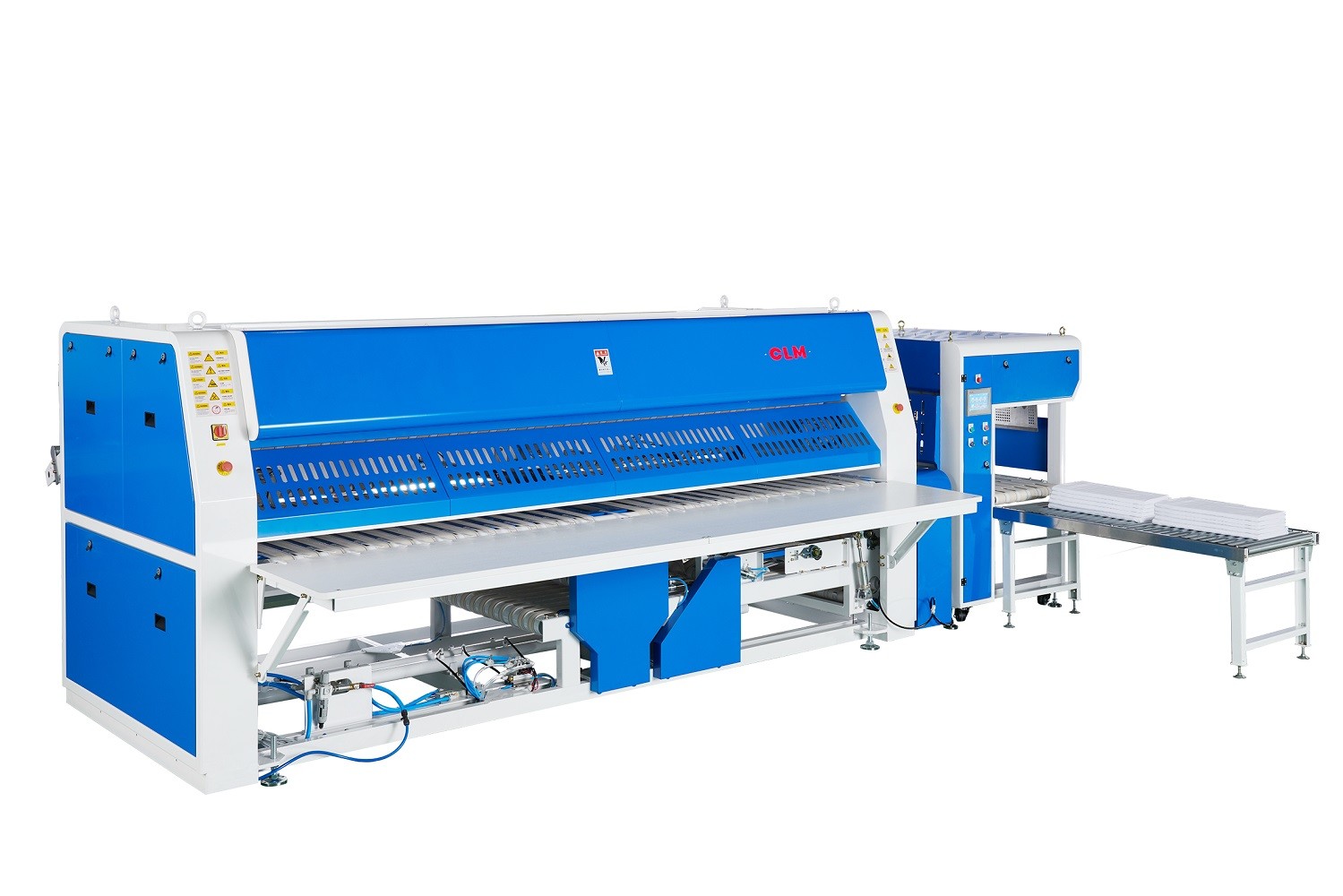

Folding Machine, up to 60 meters per minute and can fold 1200 piece of bed sheets per hour

Folding Machine, up to 60 meters per minute and can fold 1200 piece of bed sheets per hour

Folding Machine, up to 60 meters per minute and can fold 1200 piece of bed sheets per hour

Product Details:

Place of Origin: Made in China
Brand Name: CLM
Certification: CE
Model Number: KZD-3300V

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard Export Packaging
Delivery Time: 45 days
Payment Terms: T/T,L/C
Contact Now
Detailed Product Description
Color: Blue With White

High speed flatwork folder



National initiative 5 national patents



1.Fast speed-The highest speed of folding can be up to 60 meters per minute.



2.Smooth operation---Low unfold rate, very low blocked rate, the cloth can be removed within 2 minutes even be blocked.



3.Good stability---good rigid of the whole machine, the transmission parts are high precision, and all parts are equipped with high quality imported parts sets



The main technical features of rapid folding machine



1.Adopt 7 inch colorful touch screen and realize man-machine conversation function . There are over 20 kinds of programs.



2.Two long fold with three cross fold function, the first two long fold are air knife and the after three cross fold are mechanical knife.



3.The highest speed of folding can be up to 60 meters per minute and can fold 1200 piece of bed sheets per hour.



4.The function of folding pillowcase are standard configurations.



5.The stacker is part of standard configuration, the stacked qty can optional setted , do not need to bend to carry, can prevent fatigue and also improve efficiency.



6.All electrical and pneumatic components , bearing and motor are imported from Japan and Europe.



The technical parameters of high spped folder



Items Data Unit Remark
Max folding width single channel 1100~3300 mm
Four channel 350~700 pillowcase

Max transmission speed 60 m/min

Air supply Air supply pressure 0.5~0.7 Mpa
Consumption of air 450 L/min

Power supply Voltage 380V 380V,3 phase
Power Capacity 3.55 Kw  with stacker

Dimension  L*W*H 5320×3190× 1830 mm  with stacker

Weight  Folder 2000 Kg
 Stacker 500 Kg
