120KG Pass-through dryer, GSH-2700Z,GSH-1700Z, 7 pre-set drying programs available

120KG Pass-through dryer, GSH-2700Z,GSH-1700Z, 7 pre-set drying programs available

120KG Pass-through dryer, GSH-2700Z,GSH-1700Z, 7 pre-set drying programs available

Product Details:

Place of Origin: Made in China
Brand Name: CLM
Certification: CE
Model Number: GSH-2700Z,GSH-1700Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export packaging
Delivery Time: 15 days
Payment Terms: T/T,L/C
Contact Now
Detailed Product Description

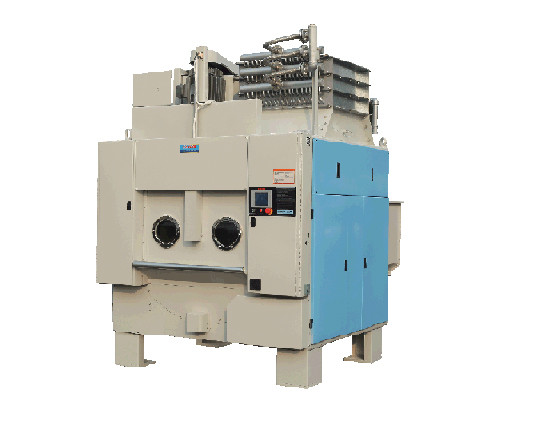

120KG Pass-through dryer, GSH-2700Z,GSH-1700Z,





The main features:



1.PLC control system with large liquid touch panel, 7 pre-set drying programs available.

2.Inner drum adopts non-shaft drive system to gurantee the accurate, quiet and stable running
both in positive and negative rotation.

3.Inncer drum adopts square punching design, improve the punching rate, shorten the drying time.

4.Inner drum adopts 6 muddler desgin to imporve linen rotary rate and make drying circulation more stable.

5.It adopts big heater desgin to improve the heating efficient greatly and lower maintenance cost.

6.Paten design of hot air flow make it staying longer in the drum to improve the heating utilization.




7.Steam heating, gas heating and hot air heating available to cooperate with tunnel washer.



The main parameters:

Model GSH-2700Z GSH-1700Z
Rated load(kg) 120 60
Drum side(mm) ￠1425×1708 ￠1425×1100
Motor power(kw) 13.2 5.2
Voltage(V/HZ) 380/50 380/50
Door opeing(mm) front:1100×600 fron:1100×600
back:￠1337 back:￠1337
Steam inlet(mm) DN50 DN32
Drain pip(mm) DN40 DN25
Exhaust size(mm) ￠500 ￠400
Weight(kg) 2300 1700
Dimension(mm) 2280×2682×2944 1950×2331×2800
