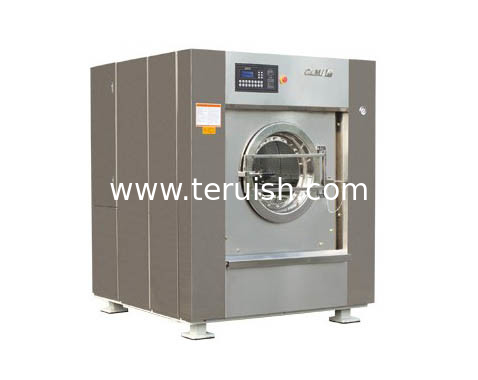

30-100 kg Fully automatic industrial washer extractor SXT-306FZ

30-100 kg Fully automatic industrial washer extractor SXT-306FZ

30-100 kg Fully automatic industrial washer extractor SXT-306FZ

Product Details:

Place of Origin: Made in China
Brand Name: CLM
Certification: CE
Model Number: SXT-306FZ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export packaging
Delivery Time: 15 days
Payment Terms: T/T,L/C
Contact Now
Detailed Product Description

30-100 kg Fully automatic industrial washer extractor SXT-306FZ,Unique structure of suspension and shake-proof design



The main technical characteristics of CLM brand fully automatic washer extractor



1.Computer controlled system,Liquid crystal display.Being able to automatic pouring water,prewash,main washing,rinsing,high speed drainage main program.Set up 30 types of washing program available, with 5 types commonly used automatic washing program.



2.Unique structure of suspension and shake-proof design,decreasing shaking rate to 98%, Ultra-low shaking. Improves greatly the stability during the high speed rotary.



3.High quality of frequency converter assures the minimum rotary speed and maximum rotary speed.

It's not only assures the washing quality but also improve dehydration rate.



4.Adopting high quality of bearing oil seal can bear high strength bearing design.

Assured normal operation under heavy load condition.



5.Reasonable size of stainless door design,Automatic door control device,

Not only assured the safety during the operation but also meet the needs of loading more cloth grass.



6.Because of the bad condition of strong acid, strong alkali and high temperature,

Where touch with the water at all using special spraying zinc anti-corrosion treatment,

Ensure the machine durability and the safety of the clothes.



7.Large diameter water inlet,Automatic feeding system,Selection of double drainage design reduce the washing time,

improve working efficiency and save the cost.





The technical parameters as following:





Model & norm

SXT-306FZ

(66pounds)

SXT-506FZ

(110pounds)

SXT-706FZ

(154pounds)

SXT-1006FZ

(221pounds)

(v)

Washing voltage

380 380 380 380

(kg)

Washing capacity

20~30 35~50 50~70 80~100

(L)

Revolver capacity

320 510 720 1000

(rpm)

Washer speed

40 40 40 32

(rpm)

Cloth rotary speed

70 70 70 64

(rpm)

Medium spin drying rotary speed

375 375 375 335

(rpm)

High spin drying rotary speed

750 730 670 650
(kw) 4 4 7.5 7.5

(kw)

Electric-heating power

27 45 54 81

(Mpa)

Steam pressure

0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6

(db)

Noise

≤75 ≤75 ≤75 ≤75

(kg)

Overall weight

2500 2900 3200 3600

(mm)

(L×W×H)

1400×1360×1770 1630×1520×1965 1750×1550×1950 1790×1880×2045
