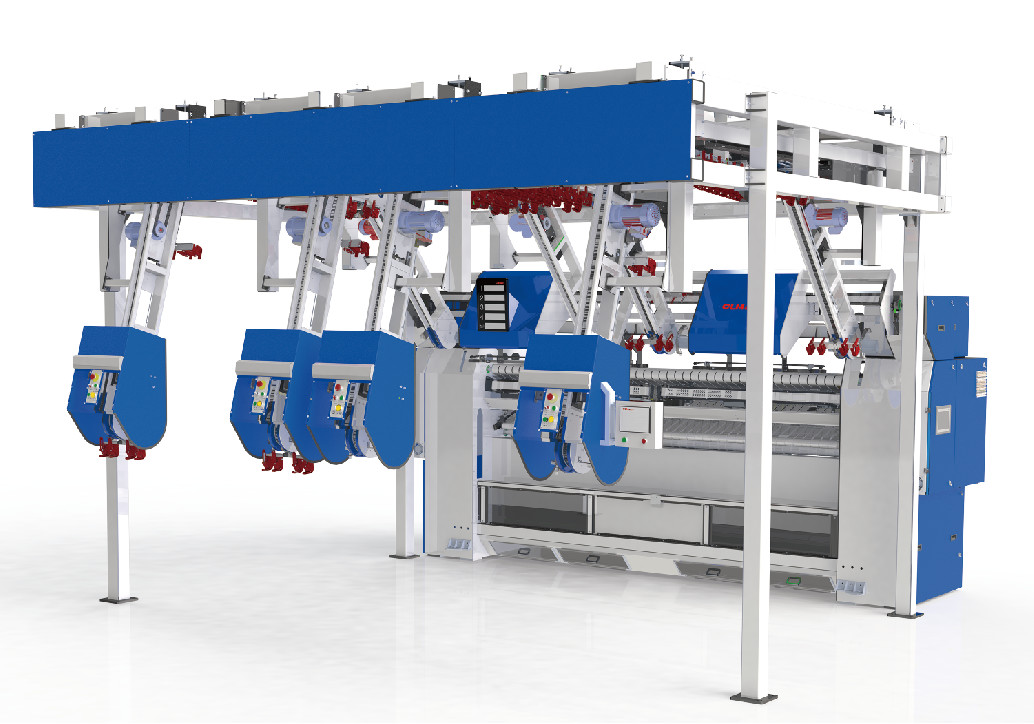

Four-station hanging storage type spreader (Whole hanging storage type),GZB---SQ3300 IV

Four-station hanging storage type spreader (Whole hanging storage type),GZB---SQ3300 IV

Four-station hanging storage type spreader (Whole hanging storage type),GZB---SQ3300 IV

Product Details:

Place of Origin: Made in China
Brand Name: CLM
Certification: CE
Model Number: GZB---SQ3300 IV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export packaging
Delivery Time: 45 days
Payment Terms: T/T,L/C
Contact Now
Detailed Product Description
Color: Blue With White

Four-station hanging storage type spreader (Whole hanging storage type)



National initiative,6 national patents



Higher efficiency of feeding, even if the operators take a break, the ironer line won’t stop work.



Combined with high speed ironer and folder to be the super high speed ironer lines,which can achieve synchronous transmission,can be up to feed 1000 pieces quilt covers per hour.



CLM Four-station hanging storage type spreader main technical features:



10 inches colorful touch screen programmable computer control is adopted.Each station has statistical function,accurately mater the feeding number,which is convenient for management.

Four station synchronous transmission design, each station has two feeding mechanical arm,high efficiency.

Air draft function can smooth the linen, which increases the flatness

Feeding speed is automatically controlled by frequency controller to adapt to different linen ironing processes and speed.

Feeding conveyor can automatically stretch and draw back to achieve the feeding of different linen such as table cloth,pillow case,bed sheets and quilt cover.

All the transfer arms are controlled by servo motor to measure the length of lien and send them at the set feeding position.

Combined with high speed ironer and folder can achieve synchronous transmission.





CLM Four-station hanging storage type spreader main technical parameters:



Model unit GZB---SQ3300 IV Note
Linen kind bed sheet,quilt cover,pillow case,etc.
Position   4
Delivery Speed M/min 10~60m/min
Max feeding speed P/h 800~1200p/h
Max size(L*W) Mm² 3300×3000mm²
Air pressure Mpa 0.6Mpa
Air consumption L/min 500L/min
Power supply V/kw 3phase/380v/17.45kw
Wire diameter mm² 3×6+2×4mm²
Overall weight kg 8000kg Include Hanger system
Dimension(L*W*H) mm 5400×5370×3850mm³ Include Hanger system
