Home ProductsIndustrial Laundry Equipment

Manual Feeder, Improving efficiency,compared with fully manual feeding,speed improves 30%~50%.

Manual Feeder, Improving efficiency,compared with fully manual feeding,speed improves 30%~50%.

    • Manual Feeder, Improving efficiency,compared with fully manual feeding,speed improves 30%~50%.
    • Manual Feeder, Improving efficiency,compared with fully manual feeding,speed improves 30%~50%.
  • Manual Feeder, Improving efficiency,compared with fully manual feeding,speed improves 30%~50%.

    Product Details:

    Place of Origin: Made in China
    Brand Name: CLM
    Certification: CE
    Model Number: SSB-3300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 45 days
    Payment Terms: T/T,L/C
    Contact Now
    Detailed Product Description
    Color: Blue With White

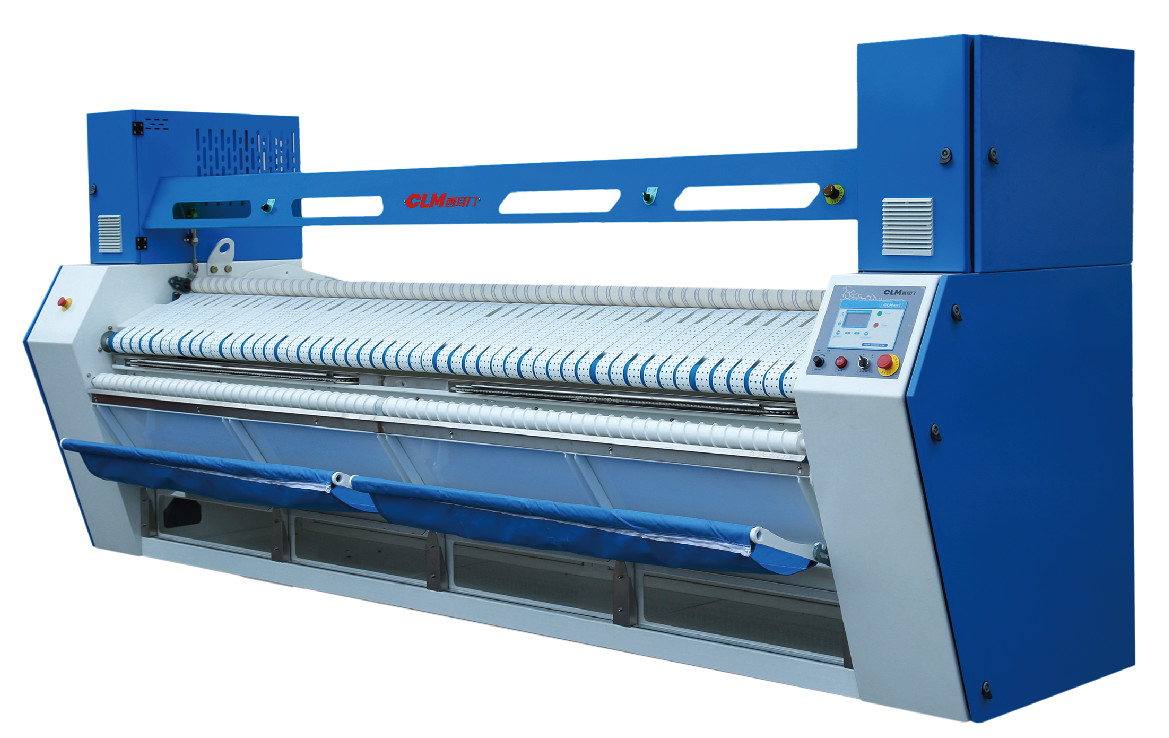

    Manual Feeder



    National initiative 3 national patents



    Improve efficiency,compared with fully manual feeding,speed improves 30%~50%.

    Automatic shaking flat,horizontal rotation,automatic brushing flat,improving the ironing quality of bed sheets and quilt covers.

    Reduce the labor intensity to avoid any accident caused by fatigued operations.



     Manual feeder main technical features:



    This machine can feed bed sheet,quilt cover,pillow case,improving 30%~50% efficiency than fully manual feeding.



    This Machine adopt high efficiency centrifugal fan and optimization design of air duct structure to ensure the smoothness and rapid delivery of linen.



    Feed inlet is equipped with conveying roller with expansion function,raising feeding speed and realizing the smoothness of line.



    Feed inlet has safety protection function,when increasing the force,it will automatically stop to protect the safety of operator.



    The machine has two rotating brushes from inside to outside during the process of linen upward transportation. These brushes can smooth linen to increase the smoothness of bed sheets and quilt cover.



    Adopt design of upper ventilation,which is convenient for filter clearance and maintenance.



    The top of feeding table is equipped with LED light,which is convenient for finding stains on the linen in order to re-wash on time.



    This machine has adjustable shelf for small linen,humanization design,reduce operator´s stopping and bending.

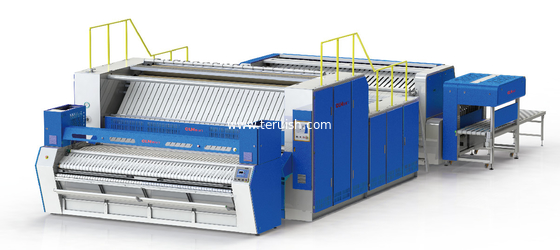

    Combined with high speed ironer and folder can achieve synchronous transmission.



    Fan:high efficiency centrifugal fan tested by dynamic balance and optimization design of air duct structure,providing strong air flow to ensure linen smoothness and rapid delivery.



    Spreading roller:by positive,reverse spiral guide steel wire,extending linen efficiently and improving ironing quality.



    Brush:two rotating brushes from inside can smooth linen and increase ironing quality of bed sheets and

    quilt cover



    Lifting roller: the first roller has lifting function through the air spring, when iron the bed sheet, the first roller will get down to press the bed sheets, when iron the quilt cover,the first roller will lift up to ensure the flatness.



    High brightness:with high light illumination,easy to check the stain on linen.





    CLM manual feeder main technical parameters



    Model unit SSB-3000 SSB-3300
    Max feeding width mm 3000 3300
    Maximum Feeding Speed m/min 50 50
    Voltage/Frequency V/Hz 380/50 380/50
    Power Supply Kw 5.71 5.71
    Dimension(L*W*H) mm 3830×1500×1820 4130×1500×1820
    Weight kg 1115 1125
