| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | BNC-J-FCMA |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |

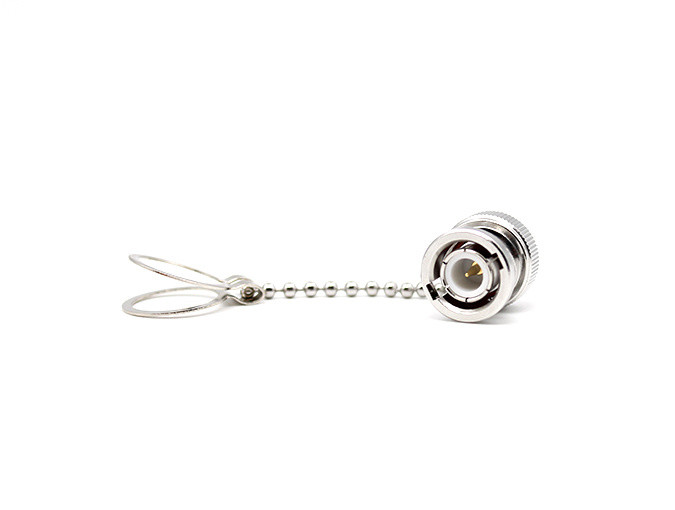

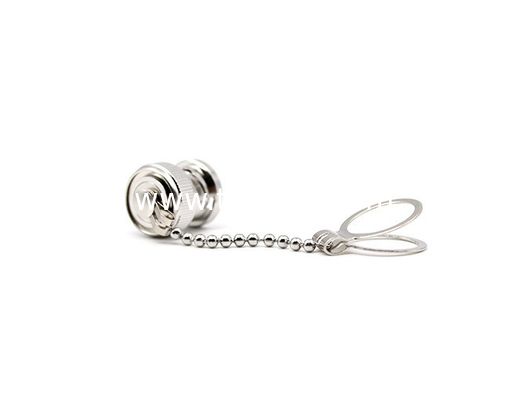

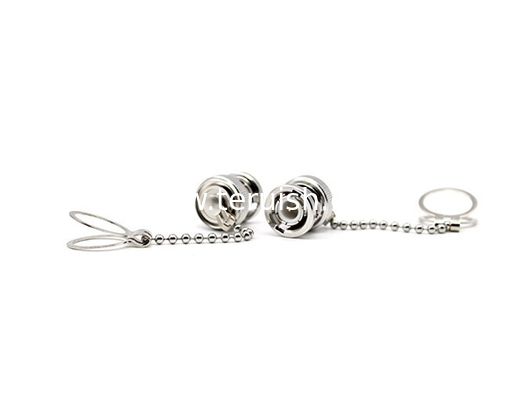

BNC Male Dust Cap with Chain
Teruilai P/N: BNC-J-FCMA
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4HZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≥5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≤3mΩ | |
| .Outer conductor | ≤2mΩ | |
| VSWR | ≤1.3 | |
| Mechanical data | Requirments | |
| Durability(matings) | ≥500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃~+165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | nickel-plated |
| Pin contacts | Phosphor bronze | gold-plated |
| Insulators | Teflon | |
