| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | F-KKP |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Lightning strike by lightning means a test to the radio equipment. The Voltage of Surge maybe as high as the dozens kilovolt/meter in the instant microseconds, this will bring the enormous load to the whole system and the damage to the equipment, The Arrestors we provide will be worked as switching voltage to protect the communication base station.Correct selection of products is a guarantee to the high-efficient system..

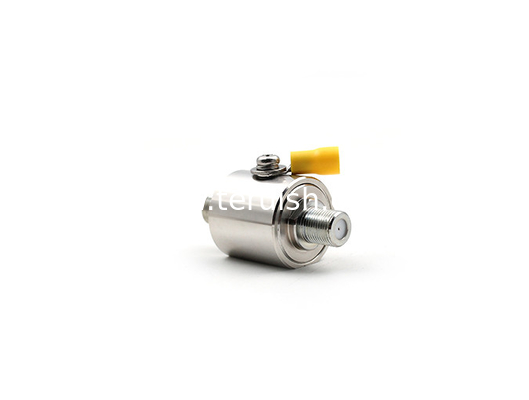

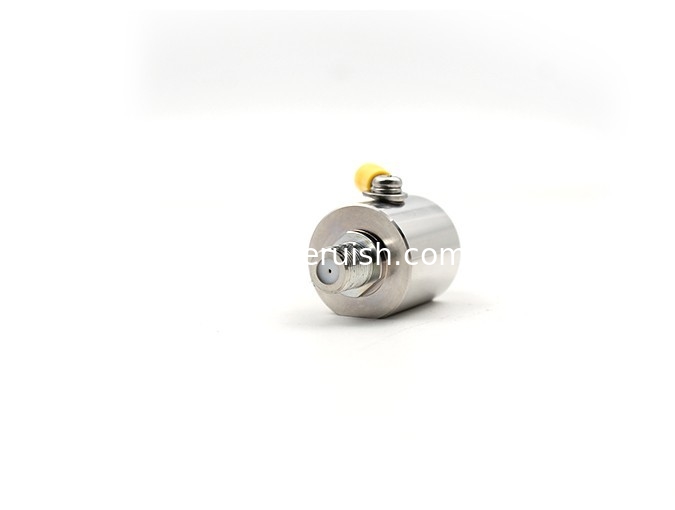

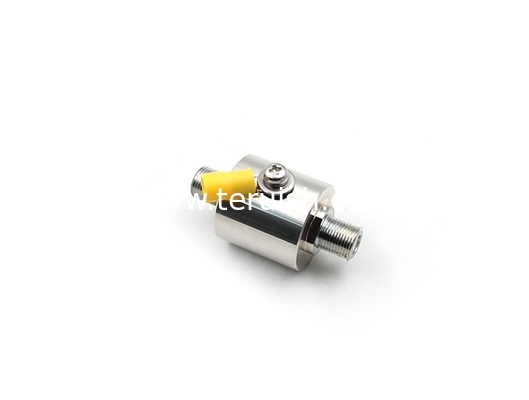

F Female to F Female Surge Arrestor
Teruilai P/N: F-KKP
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Initial Discharge voltage | 230V | |
| Characteristic impedance | 75Ω | |
| Insulation Resistance | ≧10000MΩ | |
| VSWR | ≦1.25 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃~+85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Coupling nut | Brass | Nickel plated |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
| |
||
