| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | 2.92-KYKG |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.

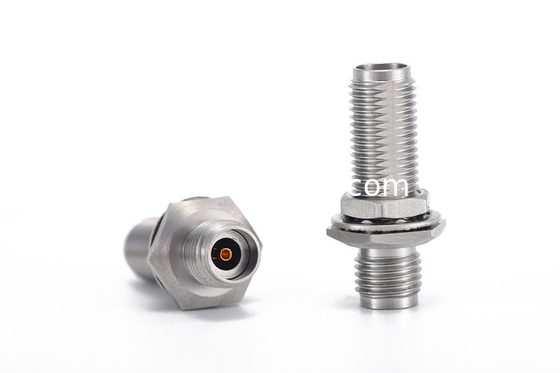

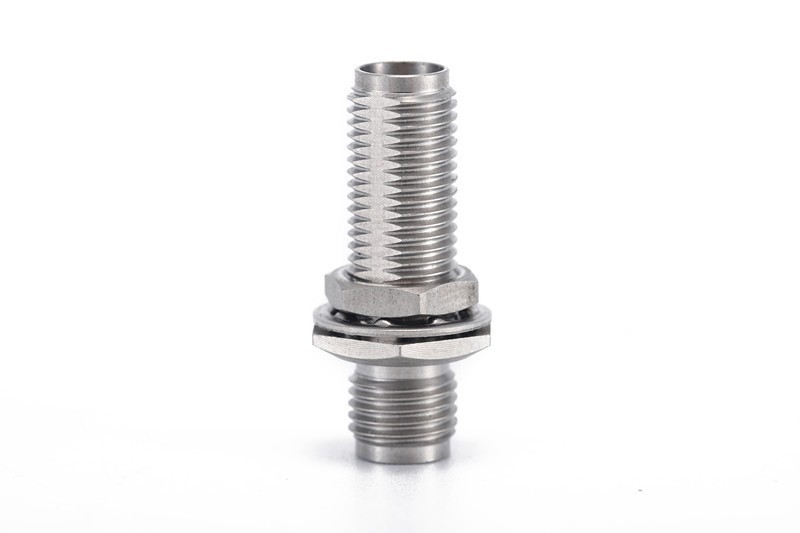

2.92mm Female to 2.92mm Female Precision RF Adapter
Teruilai P/N: 2.92-KYKG
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel (Su303),passivated | |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
