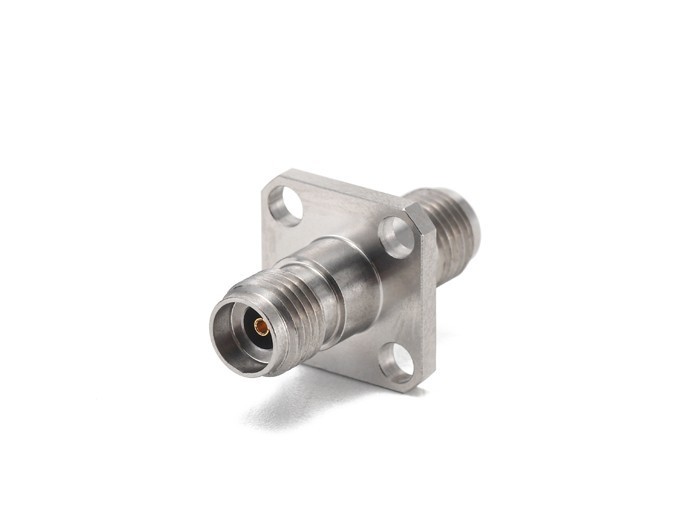

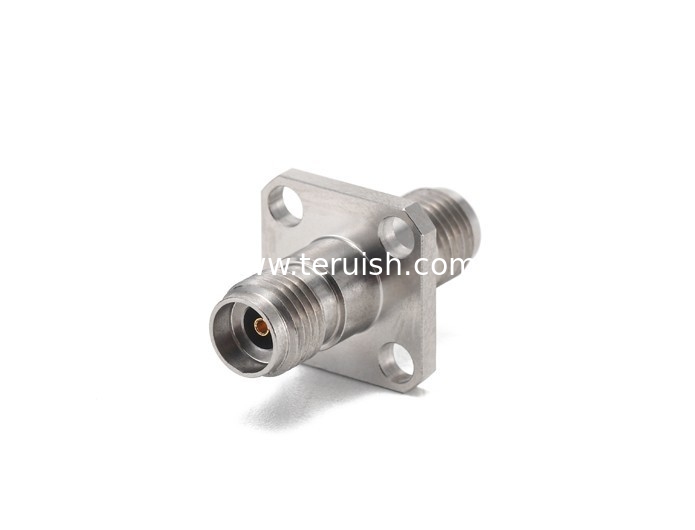

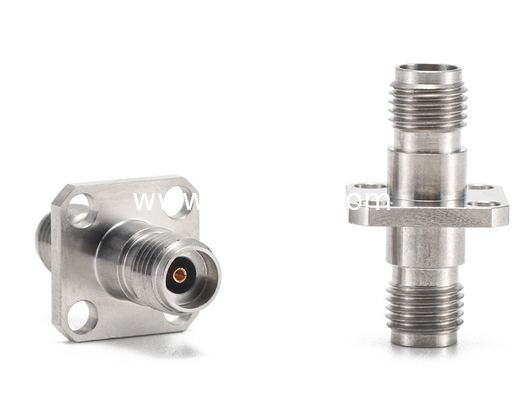

2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter

2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter

    • 2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter
    • 2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter
  • 2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 2.92-KFKG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter

    2.92mm Precision RF Adapter have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment



    Product Details



    2.92mm Female to 2.92 Female Flange Panel mount Precision RF Adapter

    Teruilai P/N: 2.92-KFKG

    RoHS Certificate: Compliant

    Interface Standard:MIL-STD-348A

    Electrical data Requirments
    Frequency range DC-40GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.25:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to 85℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel (Su303),passivated
    Pin contacts Beryllium-Copper Gold-plated
    Insulators PEI
