2.4mm Female to 2.4mm Female Flange RF Adapter

2.4mm Female to 2.4mm Female Flange RF Adapter

    • 2.4mm Female to 2.4mm Female Flange RF Adapter
    • 2.4mm Female to 2.4mm Female Flange RF Adapter
    • 2.4mm Female to 2.4mm Female Flange RF Adapter
  • 2.4mm Female to 2.4mm Female Flange RF Adapter

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 2.4-KFKG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

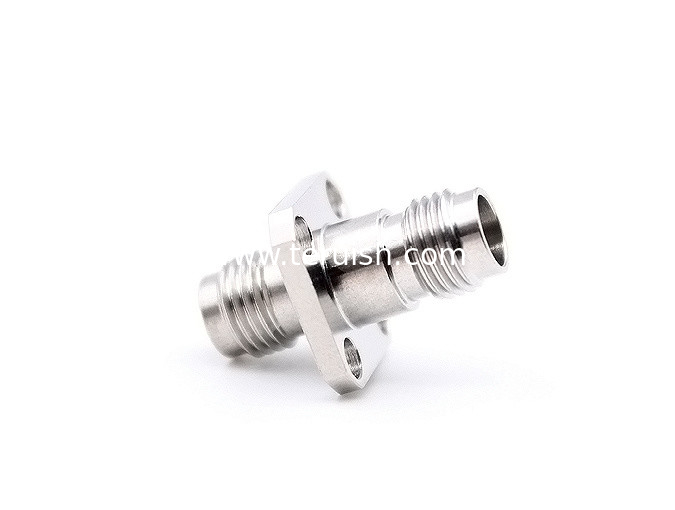

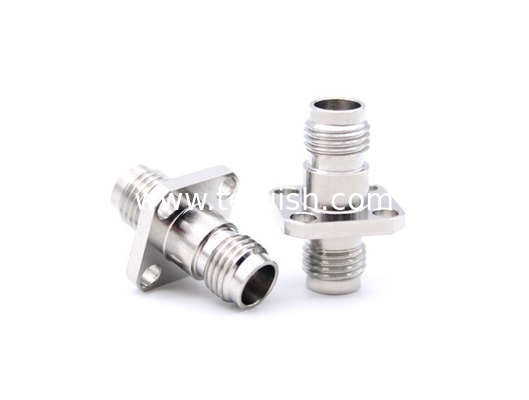

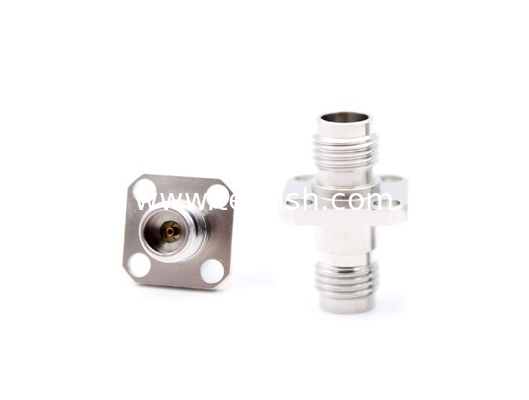

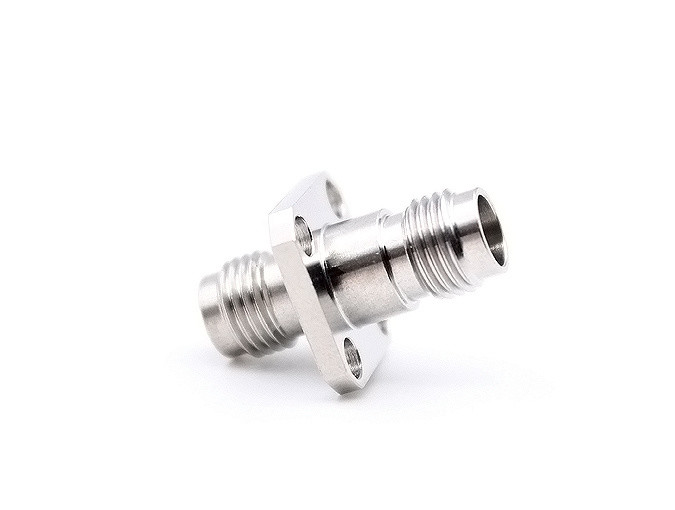

    2.4mm Female to 2.4mm Female Flange RF Adapter

    2.4mm Connector is one kind of Precision Microwave Connectors, The frequency can be up to 50GHZ.,The products have been widely used in the field of Testing System,Aerospace Field, Microwave Weapon Systems.

    Product Details

    2.4mm Female to 2.4mm Female Flange RF Adapter

    Teruilai P/N : 2.4-KFKG

    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range DC-50GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel ,passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI
