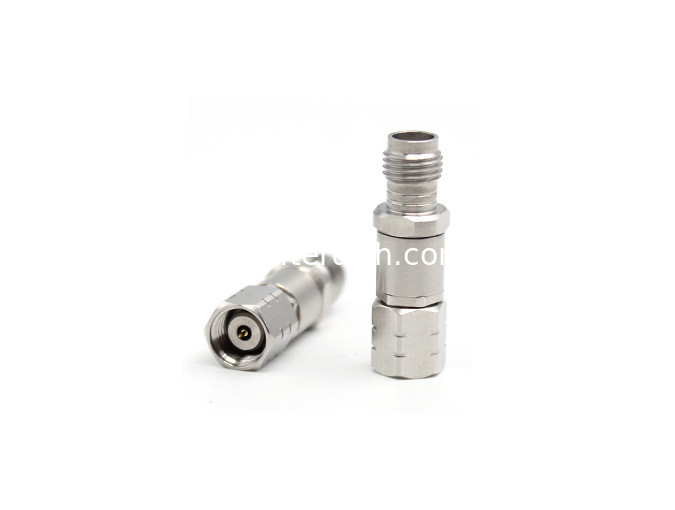

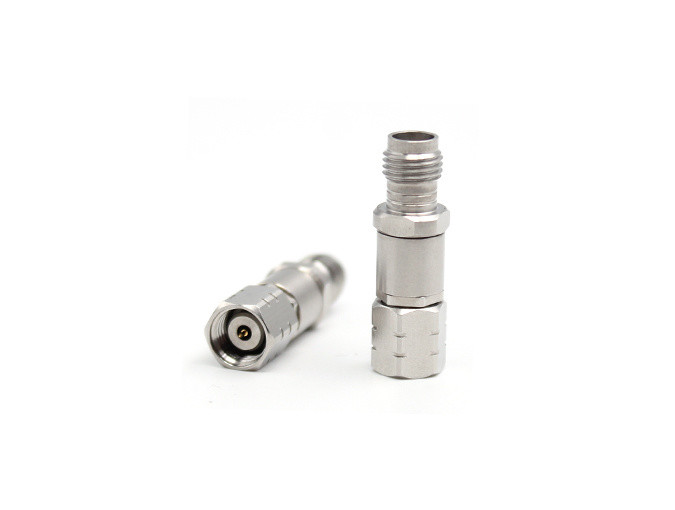

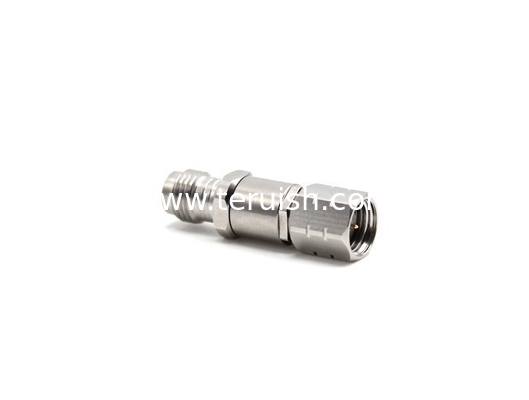

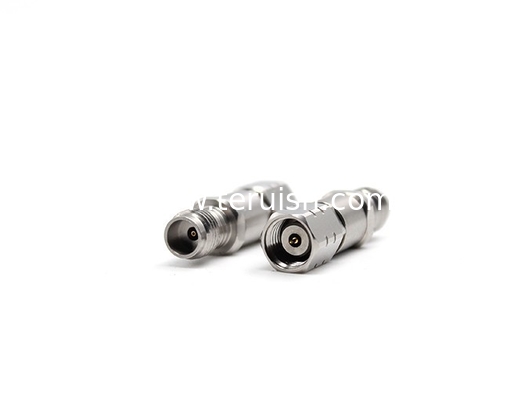

Precision Adapter 1.85 Female to 1.85 Male

Precision Adapter 1.85 Female to 1.85 Male

    • Precision Adapter 1.85 Female to 1.85 Male
    • Precision Adapter 1.85 Female to 1.85 Male
    • Precision Adapter 1.85 Female to 1.85 Male
  • Precision Adapter 1.85 Female to 1.85 Male

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 1.85-JKG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Precision Adapter 1.85 Female to 1.85 Male

    1.85mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.
    They are widely used in testing system, aerospace field, microwave weapon systems.



    Product Details

    Precision Adapter 1.85 Female to 1.85 Male

    Teruilai P/N: 1.85-JKG

    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range DC-67GHZ
    Dieletric withstanding voltage ≧750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    .Center conductor ≦4.0mΩ
    .Outer conductor ≦2.0mΩ
    VSWR ≦1.3:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium-Copper gold-plated
    Insulators PEI
