| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | 1.0-JKG |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |

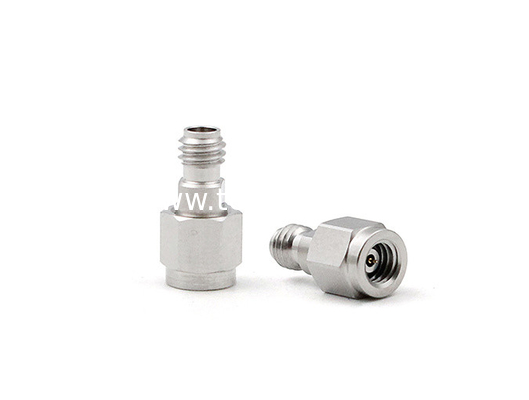

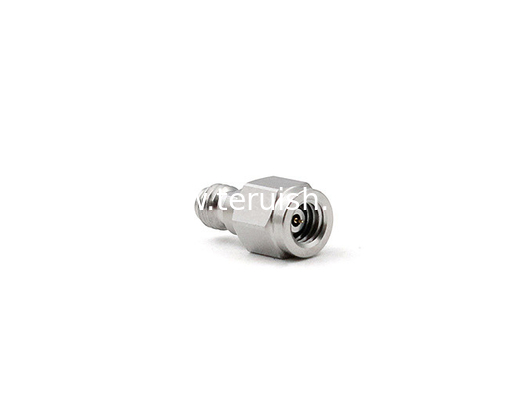

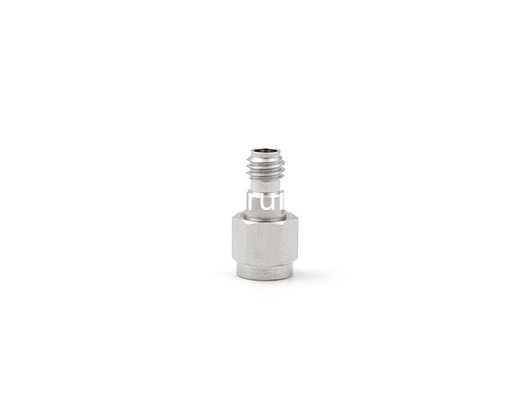

1.0mm male to 1.0 female RF Coaxial stainless steel Adaptor
Teruilai P/N:1.0-JKG
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-110GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| VSWR | ≦1.50 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
