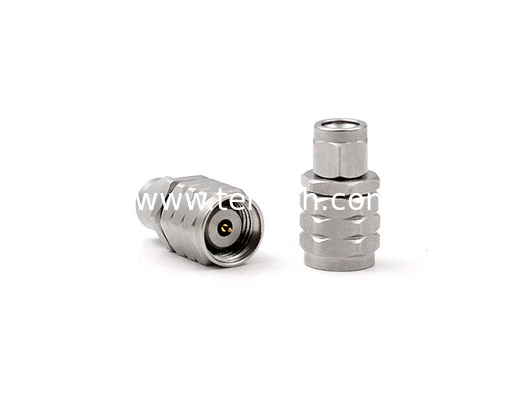

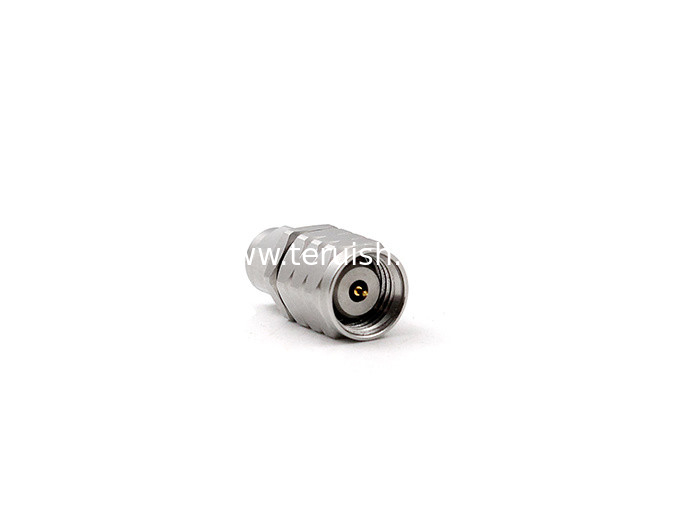

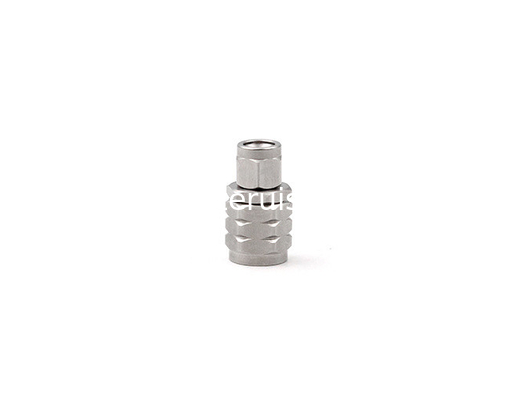

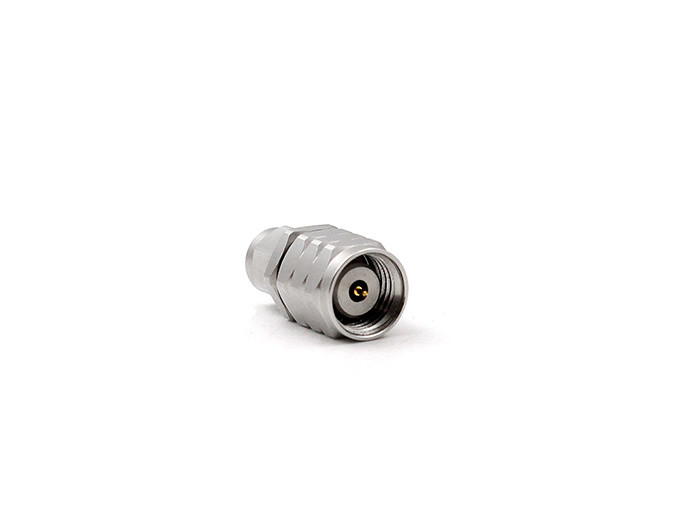

Precision Adapter 1.85 Male to 1.0 Male

Precision Adapter 1.85 Male to 1.0 Male

    • Precision Adapter 1.85 Male to 1.0 Male
    • Precision Adapter 1.85 Male to 1.0 Male
    • Precision Adapter 1.85 Male to 1.0 Male
  • Precision Adapter 1.85 Male to 1.0 Male

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 1.0/1.85-JJG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Precision Adapter 1.85 Male to 1.0 Male



    Product Details

    Precision Adapter 1.85 Male to 1.0 Male



    Teruilai P/N: 1.0/1.85-JJG



    RoHS Certificate: Compliant



    Electrical data Requirments
    Frequency range DC-65GHZ
    Dieletric withstanding voltage ≧750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    VSWR ≦1.4:1

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium-Copper gold-plated
    Insulators PEI
