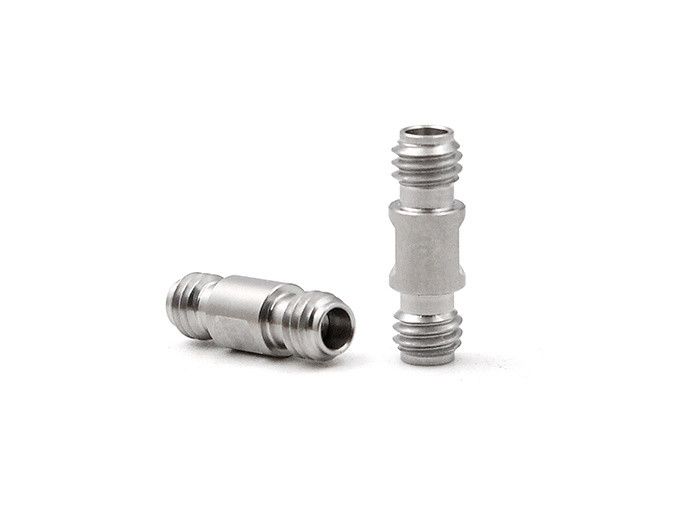

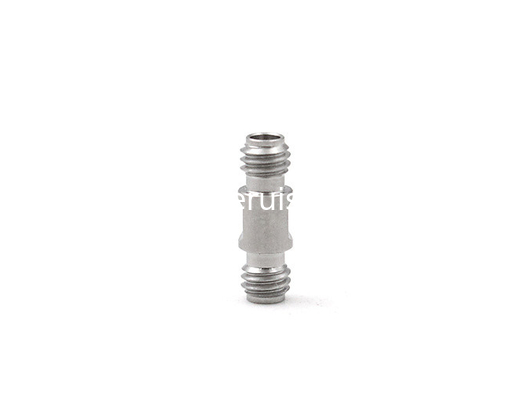

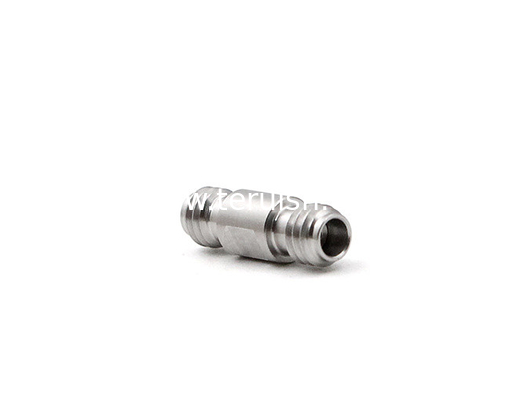

1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor

1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor

    • 1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor
    • 1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor
    • 1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor
  • 1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: 1.0-KKG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-10 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor



    Product Details

    1.0mm female to 1.0 female stainless steel RF Coaxial Adaptor



    Teruilai P/N:1.0-KKG



    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-110GHZ
    Dieletric withstanding voltage ≧750V
    Characteristic impedance 50Ω
    Insulation Resistance ≧5000MΩ
    Contact Resistance
    VSWR ≦1.50

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -45℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium-Copper gold-plated
    Insulators PEI
