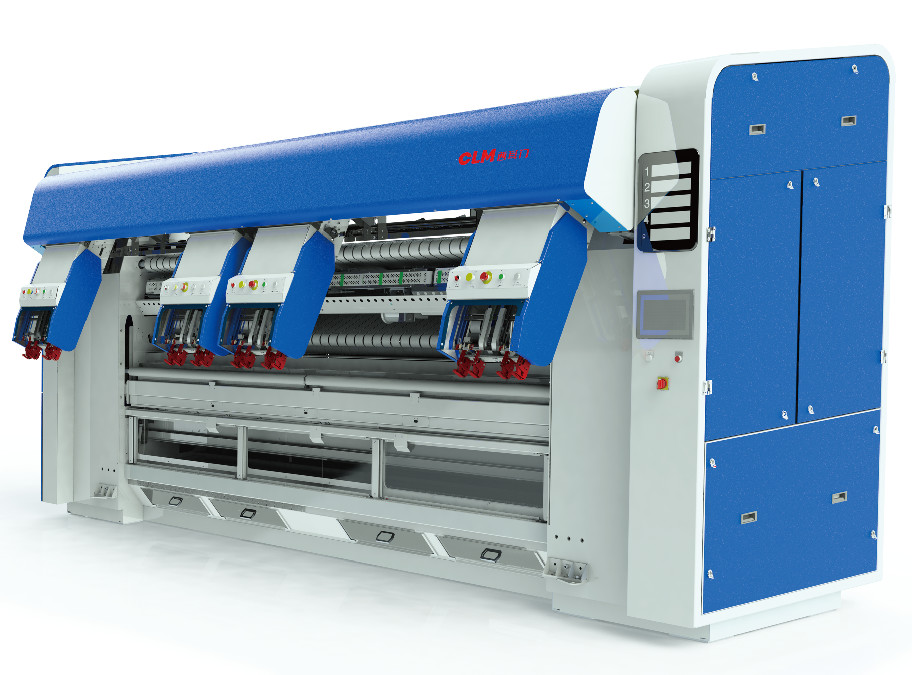

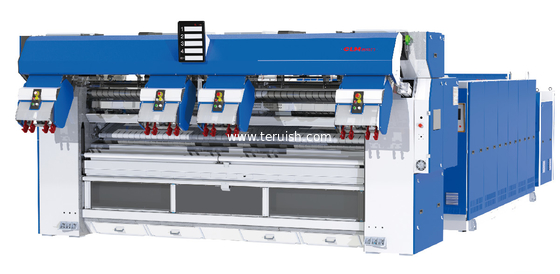

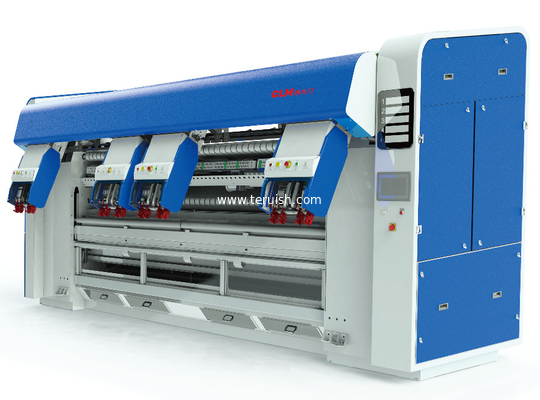

Four-station single channel high speed spreader(multifunctional), more efficient and more powerful

Four-station single channel high speed spreader(multifunctional), more efficient and more powerful

    • Four-station single channel high speed spreader(multifunctional), more efficient and more powerful
    • Four-station single channel high speed spreader(multifunctional), more efficient and more powerful
  • Four-station single channel high speed spreader(multifunctional), more efficient and more powerful

    Product Details:

    Place of Origin: Made in China
    Brand Name: CLM
    Certification: CE
    Model Number: GZB-3300IV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 45 days
    Payment Terms: T/T,L/C
    Contact Now
    Detailed Product Description
    Color: Blue With White

    Four-station single channel high speed spreader(multifunctional)



    National Initiative,6 national patents



    Compared to other domestic brands,it is more efficient and more powerful, both automatic feeding and manual feeding of bed sheets and quilt cover can be achieved, pillow case and table cloth can be fed too.



    Combined with high speed ironer and folder to be a high speed ironer lines to achieve synchronizing transmission, can be up to feed 1100 bed sheets or 900 quilt covers per hour.



    CLM Four-station single channel high speed spreader main technical features



    10 inches colorful touch screen programmable computer control is adopted.Each station has statistical function,accurately mater the feeding number,which is convenient for management.



    Four station synchronous transmission design, each station has two feeding mechanical arm,high efficiency.



    Air draft function can smooth the linen, which increases the flatness



    Feeding speed is automatically controlled by frequency controller to adapt different linen ironing processes and speed.



    Feeding conveyor can automatically stretch and draw back to achieve the feeding of different linen such as table linen,pillow case,bed sheets and quilt cover.



    All the transfer arms are controlled by servo motor to measure the length of lien and send them at the set feeding position.



    Combined with high speed ironer and folder can achieve synchronous transmission.



    This spreader has 4 stations,it can be operate from 1 to 4 workers who does not need any skill.

    The spreader can operate automatically after feeding line by workers.



    To improve the feeding efficiency, it uses the design of rotation, after one clamp finish feeding , another clamp comes to feeding position to wait for linen.



    The shuttle is controlled by servo motor,high precision and speed, not only guiding bed sheets at low speed, but also guiding quilt covers at high speed.



    During the process of feeding, linen is absorbed firmly on the belt with brushes, these brushes rotate to right and left side with high speed to ensure the flatness.



    This spreader not only can feed bed sheets, quilt covers automatically,but also feed bed sheets, quilt cover, pillow case and table linen manually.



    10 inches touch screen is beneficial to monitor and operate, which can memory 20 types of program. It also provides the connectors for ironer and folding machine to achieve linkage.



    Each station has statistics function to record the number of feeding linen, which is convenient for the management of operator.





    CLM Four-station single channel high speed spreader main technical parameters:



    Model Unit GZB---3300 IV
    Linen kind bed sheet,quilt cover,pillow case,etc.
    Station number 4
    Delivery Speed M/min 10~60m/min
    Max feeding speed P/h 800~1100P/h
    Max size(L*W) mm² 3300x3000 mm²
    Air pressure Mpa 0.6Mpa
    Air consumption L/min 500L/min
    Power supply V/kw 3phase/380v/15.05kw
    Wire diameter mm² 3×6+2×4mm²
    Overall weight kg 4200kg
    Dimension(L*W*H) mm 4960×2220×2380
