| Place of Origin: | China |
| Brand Name: | Terui |
| Certification: | RoHS |
| Model Number: | 3.5-JB2AG |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000000pcs per month |
Series 3.5mm microwave Connector is one kind of precision milimeter wave connector widely used in the testing system, aerospace field, microwave weapon systems. The frequency ranges from DC to 26.5 Ghz

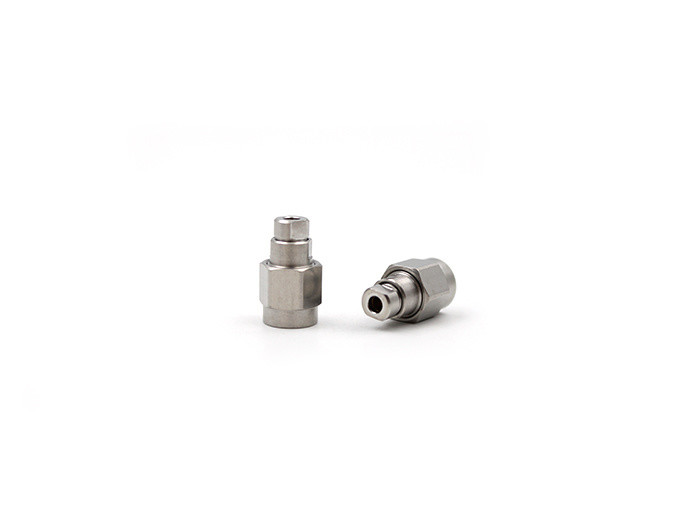

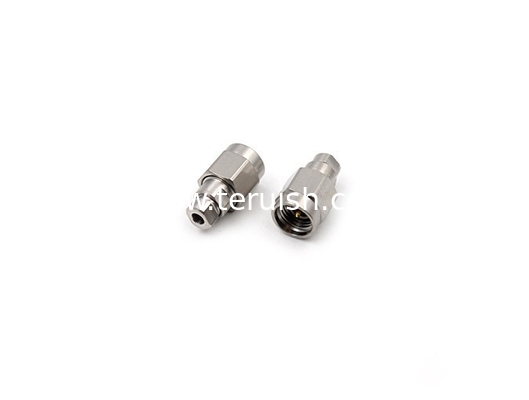

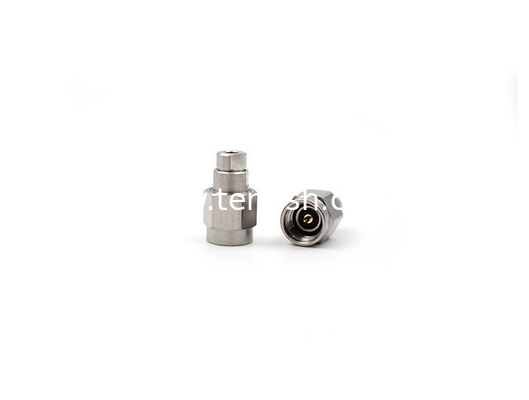

3.5mm Male for .086/RG405 Cable
Teruilai P/N:3.5-JB2AG
RoHS Certificate: Compliant
| data | Requirments | |
| Frequency range | DC-26.5Ghz | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | stainless steel | passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
