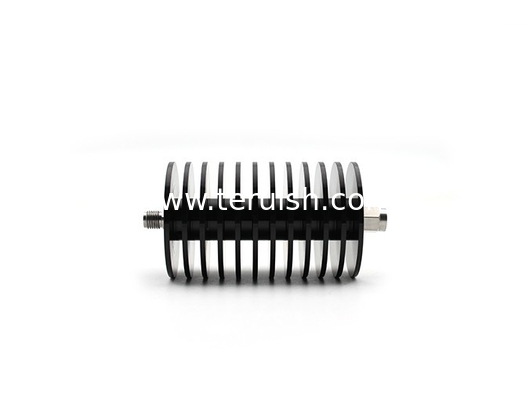

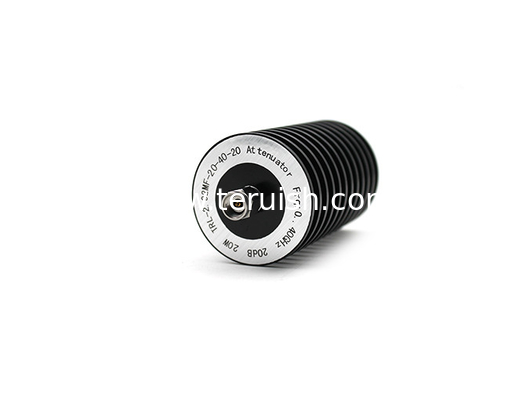

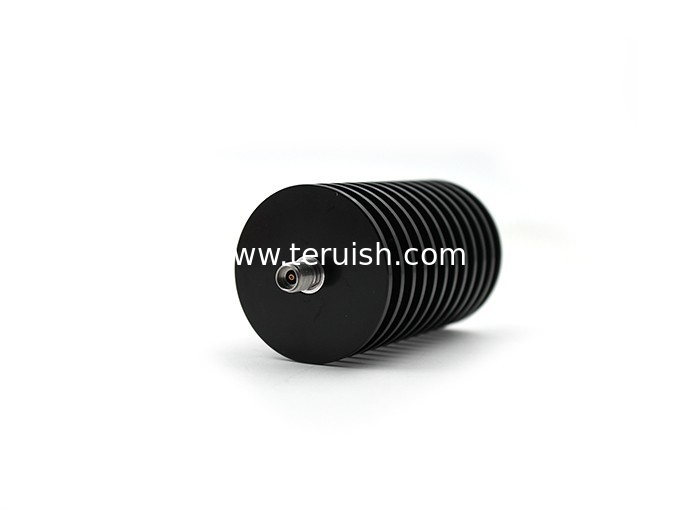

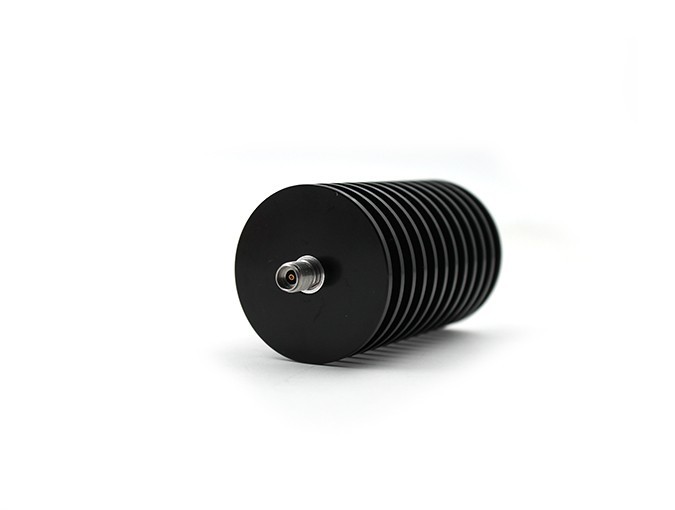

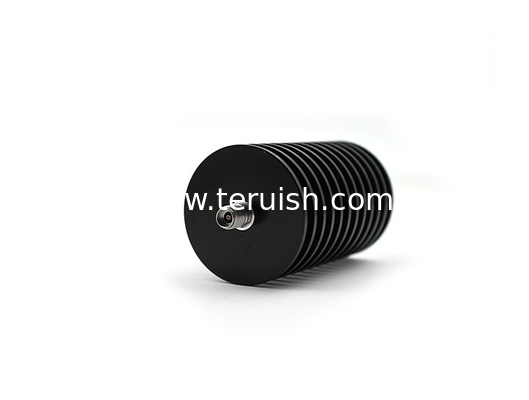

Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

    • Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
    • Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
    • Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
  • Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TRL-2.92MF-20-40-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-14 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

    Series 2.92mm Coaxial connectors are one kind of precision millimeter-wave connectors developed from series SMA.They adopt air interface.They have the advantages of small,light,high frequency and superior reliability,etc.The products have been widely used in the field of modern precision measure and micro-wave communication equipment.



    Product Details

    Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

    Teruilai P/N : TRL-2.92MF-20-40-20

    RoHS Certificate: Compliant









    Electrical data Requirments
    Frequency range 0-40GHZ
    Characteristic impedance 50Ω
    VSWR ≦1.3

    Mechanical data Requirments
    Durability (matings) ≧500

    Environmental data Requirments
    Temperature range -55℃ to +125℃

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel ,passivated
    Female center contacts Beryllium-Copper Gold-plated
    Insulators PEI
