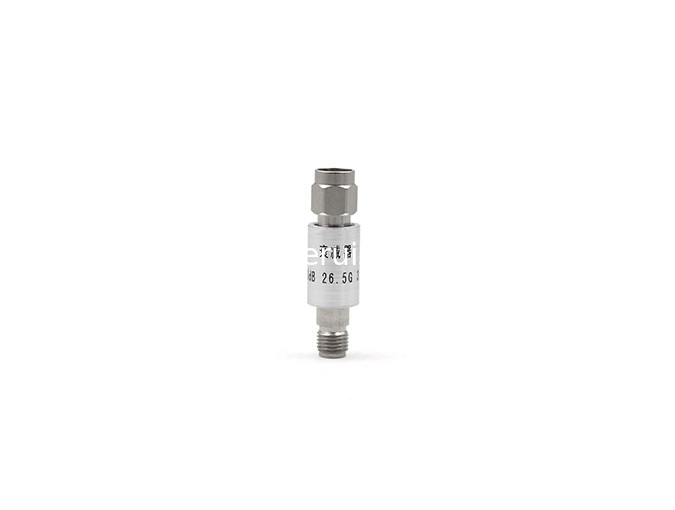

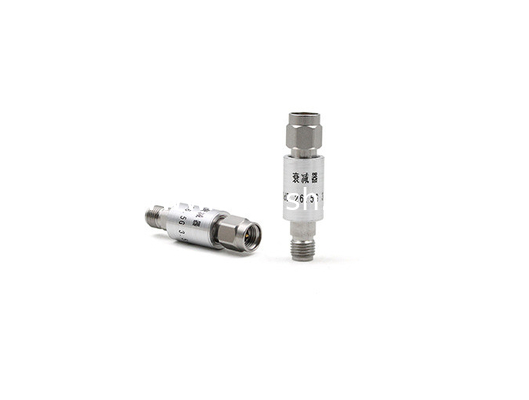

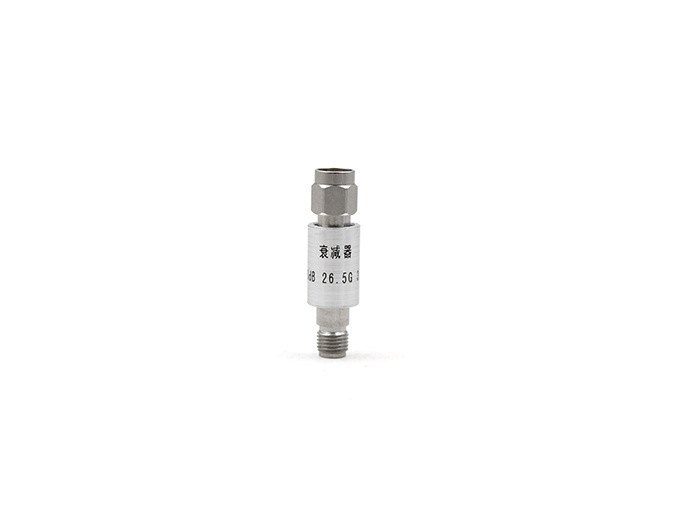

Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

    • Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
    • Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
    • Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
  • Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

    Product Details:

    Place of Origin: China
    Brand Name: Terui
    Certification: RoHS
    Model Number: TRL-3.5MF-2-26.5-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 3-14 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000000pcs per month
    Contact Now
    Detailed Product Description

    Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

    3.5mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.

    They are widely used in testing system, aerospace field, microwave weapon systems.





    Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

    Teruilai P/N : TRL-3.5MF-2-26.5-10

    RoHS Certificate: Compliant

    Electrical data Requirments
    Frequency range DC-26.5Ghz
    Impedance 50Ω
    Nominal Attenuator 6dB
    Power Input 2Watt
    VSWR Maximum 1.20

    Mechanical data Requirments
    Durability (matings) ≧500

    Material data Requirments
    Connector parts Material Plating
    Body Stainless steel Passivated
    Pin contacts Beryllium copper Gold
    Insulators PTFE
