| Place of Origin: | Made in China |
| Brand Name: | CLM |
| Certification: | CE |
| Model Number: | GQZ SERIES（15、50、70KG） |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export packaging |
| Delivery Time: | 15 days |
| Payment Terms: | T/T,L/C |

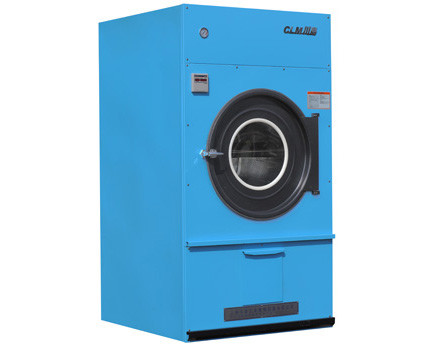

Gas heating automatic tumble dryer(15,50,70KG),GQZ SERIES
Fully Automatic Tumble dryer Features:
1. Computer controlled system with 5 types of automatic programs available.
According to the different kinds of linen to choose corresponding drying program.
2. Large power heater with thermal insulation layer covering outside drum;
Making temperature rise quickly and improve heating efficiency.
3. Large diameter door design realize easy loading and unloading of linen.
4. The patent and optimized design of the transmission structure without welding stress happening;
Assure the machine durability and convenient for maintenance.
5. Four heating ways: Steam heating, Electrical heating, Gas/LPG heating, Hot-blast air heating available.
Main technical Parameters:
|
Model |
GQZ-300C
|
GQZ-1000C
|
GQZ-1400C
|
|
Rated load(kg) |
15
|
50
|
70
|
|
(33LBS)
|
(110LBS)
|
(154LBS)
|
|
|
Inner drum size(mm) |
￠805×580
|
￠1080×1060
|
￠1270×1120
|
|
electric heating power(kw) |
15
|
43.2
|
64
|
|
engine heating power(kw) |
1.1
|
2.6
|
3.7
|
|
machine weight(kg) |
450
|
800
|
1000
|
|
gas consumption(m³/h) |
1.5
|
3.5
|
4.5
|
|
exterior dimension(mm) |
890×1055×1575
|
1185×1645×2165
|
1425×1840×2290
|
|
|
1.Steam pressure is : 0.4-0.6Mpa |
||
|
2.Power supply requirement: 220V,380V,400V,415V,440V |
|||
|
Notes
|
|||
|
|
3.drum rotary speed: 34r／min |
||
|
4.Z-steam heating D-electric heating Q-gas heating |
|||
